Ford Ecosport: Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Engine Coolant Temperature (ECT) Sensor

Ford Ecosport 2014-2025 Service and Repair Manual / Engine / Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Engine Coolant Temperature (ECT) Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Drain the cooling system.
    Refer to: Cooling System Draining, Vacuum Filling and Bleeding (303-03J) .
  1. Remove the engine appearance cover.

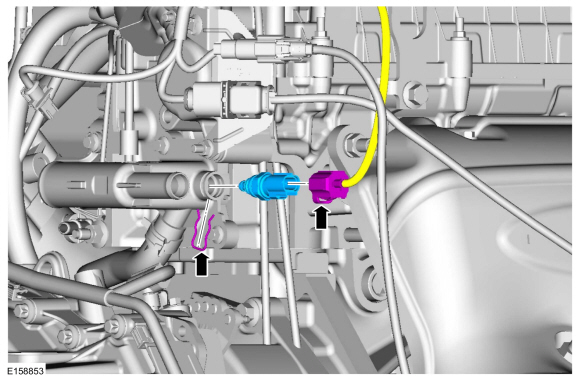

    • Disconnect the electrical connector. Remove the clip and the ECT sensor.

Installation

  1. To install, reverse the removal procedure.
