Ford Ecosport: Body Closures / Removal and Installation - Front Door

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Body Closures / Removal and Installation - Front Door

Special Tool(s) / General Equipment

Door Lift

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Open the front door.
  1. Remove the check arm bolt.
    Torque: 17 lb.ft (23 Nm)
  1. Disconnect the front door electrical connector.

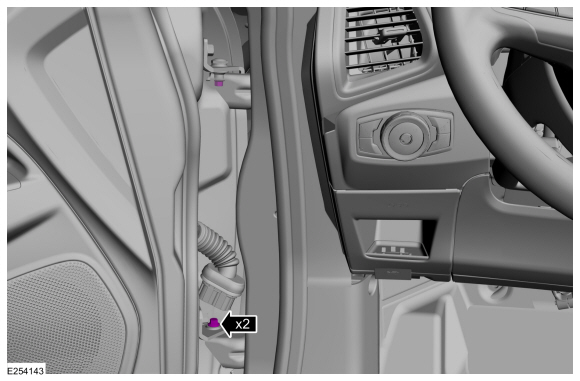

  1. Remove the door hinge pivot bolts.
    Use the General Equipment: Door Lift
    Torque: 22 lb.ft (30 Nm)

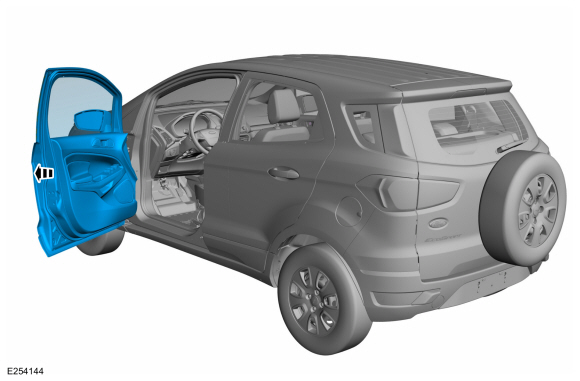

  1. Remove the door hinge pivot bolts.
    Use the General Equipment: Door Lift

Installation

  1. To install, reverse the removal procedure.

  1. NOTE: This step is only necessary when installing a new component.

    Check the body-to-front door dimensions. Align the door as necessary.
    Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
