Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

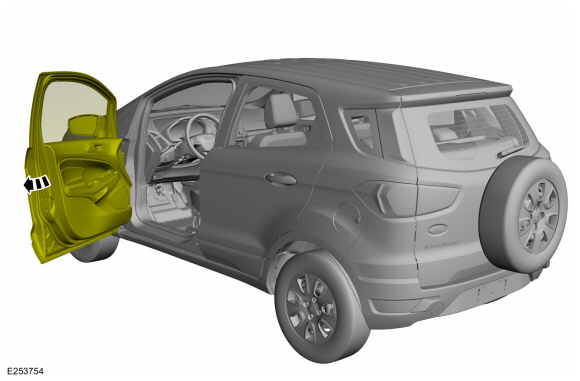

  1. Open the front door.

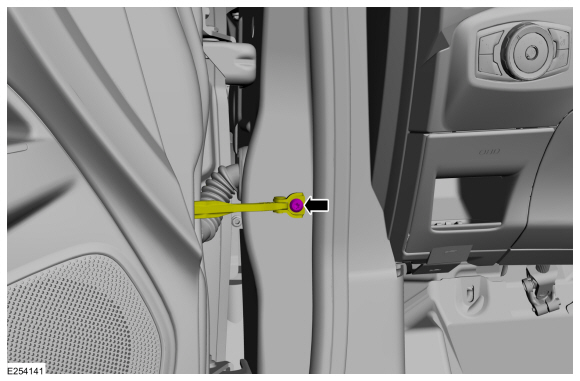

  1. Remove the check arm bolt.
    Torque: 17 lb.ft (23 Nm)
  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. NOTE: Door removed from vehicle for clarity.

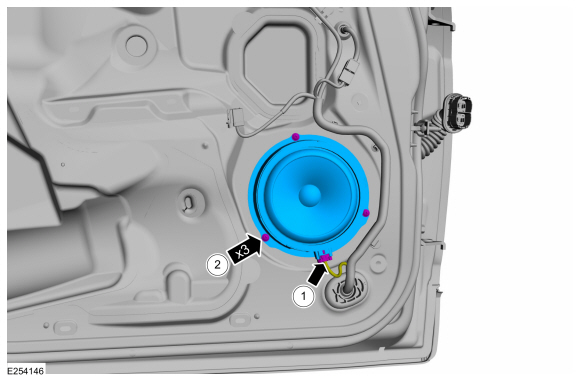

    Remove the front door speaker.
    1. Disconnect the electrical connector.
    1. Remove the bolts and the speaker.
      Torque: 12 lb.in (1.3 Nm)
  1. NOTE: Door removed from vehicle for clarity.

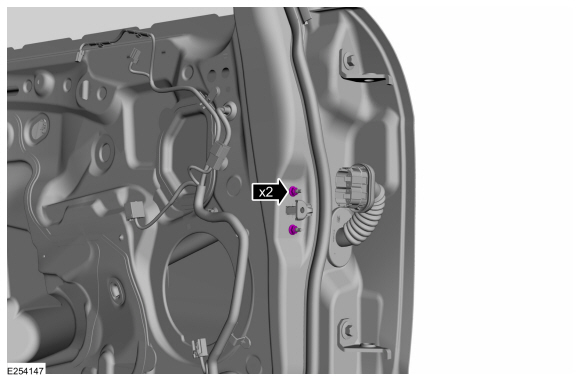

    Remove the front door check arm nuts.
    Torque: 71 lb.in (8 Nm)
  1. NOTE: Door removed from vehicle for clarity.

    Remove the front door check arm assembly.

Installation

  1. To install, reverse the removal procedure.
