Ford Ecosport: Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Evaporative Emission Canister Purge Valve
Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of
any type when working on or near any fuel-related component. Highly
flammable mixtures may be present and may be ignited. Failure to follow
these instructions may result in serious personal injury.
WARNING:
Do not carry personal electronic devices such as cell
phones, pagers or audio equipment of any type when working on or near
any fuel-related component. Highly flammable mixtures may be present and
may be ignited. Failure to follow these instructions may result in
serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
-
-
Disconnect the quick connect coupling.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.0L EcoBoost (92kW/125PS), General Procedures).
-
-

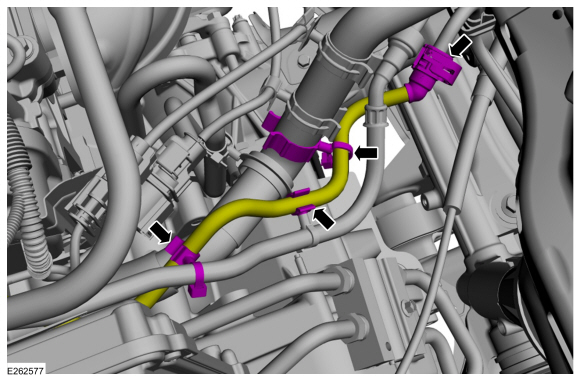

Disconnect the quick release couplings and position aside the EVAP purge valve hose.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.0L EcoBoost (92kW/125PS), General Procedures).
-
-

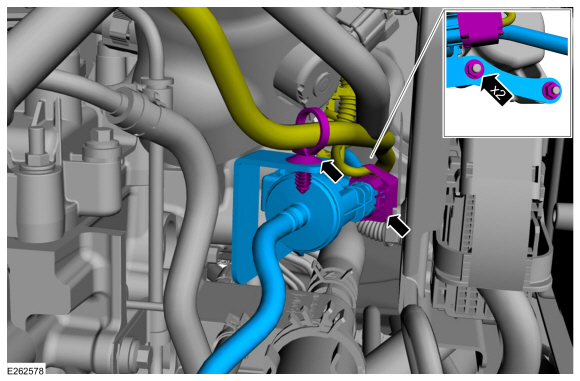

Detach the retainer and disconnect the electrical connector.
-

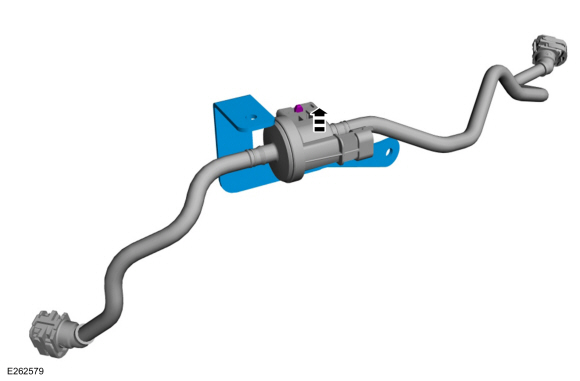

Remove the mounting bracket nuts and remove the EVAP purge valve assembly.
Torque:
62 lb.in (7 Nm)
-
-
Remove the EVAP canister purge valve bracket.
Installation
-
To install, reverse the removal procedure.
