Ford Ecosport: Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Evaporative Emission Canister Ventilation Filter

Ford Ecosport 2014-2025 Service and Repair Manual / Engine / Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Evaporative Emission Canister Ventilation Filter

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the EVAP canister.
    Refer to: Evaporative Emission Canister (303-13A Evaporative Emissions - 1.0L EcoBoost (92kW/125PS), Removal and Installation).

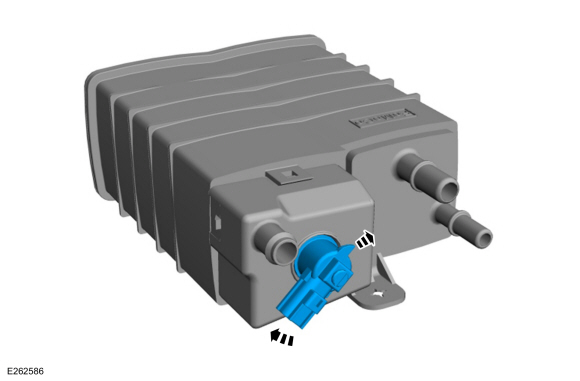

  1. Remove the EVAP canister solenoid.

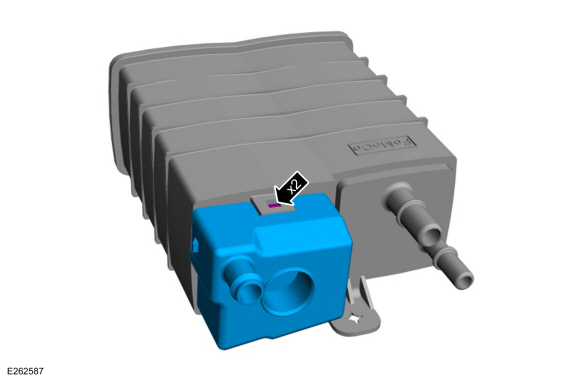

  1. Release the tabs and remove EVAP canister ventilation filter.

Installation

  1. To install, reverse the removal procedure.
