Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
-
Remove the upper B-pillar trim panel.
Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
-

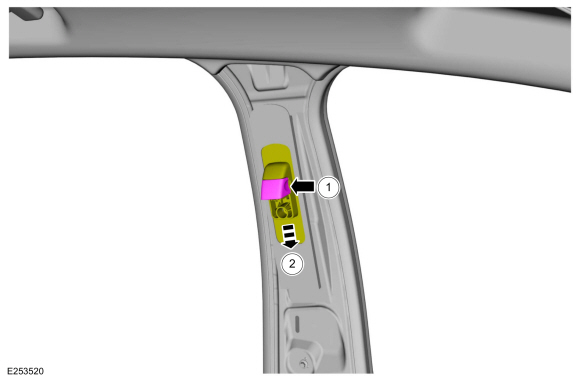

Pull the release handle.
-
Slide the seatbelt shoulder height adjuster down.
-
Slide the seatbelt shoulder height adjuster cover down.
-
-
Remove the bolt.
Torque:
30 lb.ft (40 Nm)
-
Rotate the seatbelt shoulder height adjuster 90 degrees clockwise.
-
Release the locking tab and remove the seatbelt shoulder height adjuster.
Installation
NOTE:
During installation, make sure the seatbelt webbing is not
twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH shown, RH similar.
Position the rear seat cushion to the full forward position...
