Ford Ecosport: Handles, Locks, Latches and Entry Systems / General Procedures - Door Latch Lubrication
Special Tool(s) /
General Equipment
Materials
| Name |
Specification |
Motorcraft® Multi-Purpose Grease Spray XL-5-A |
ESB-M1C93-B
|
Activation
NOTE:
Typical left front door shown, others similar.
-

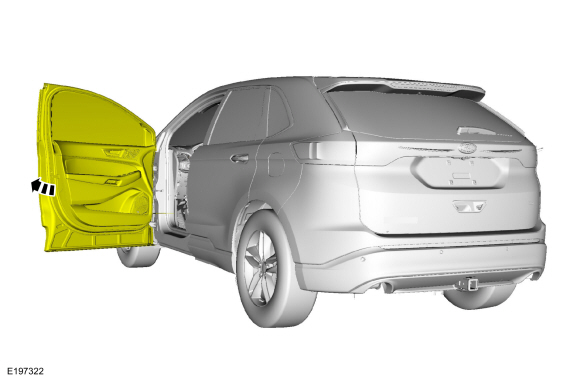

Open the door.
-

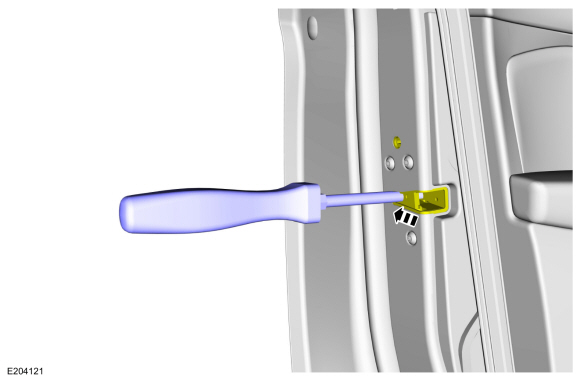

Using a flat blade screwdriver, fully close the latch (2 clicks).
Use the General Equipment: Flat-Bladed Screwdriver
-
NOTICE:
Do not over-lubricate the latch. Using excessive grease may damage the internal lock motor.

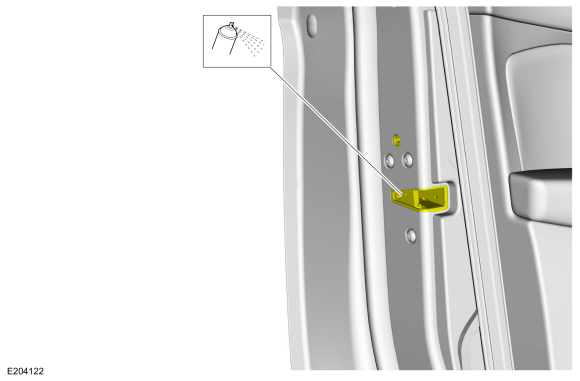

Spray the multi-purpose grease into the opening on the door latch for approximately 5 seconds.
Material: Motorcraft® Multi-Purpose Grease Spray
/ XL-5-A
(ESB-M1C93-B)
-
NOTE:
Some exterior door handles are operated mechanically
while other exterior door handles are operated electronically.

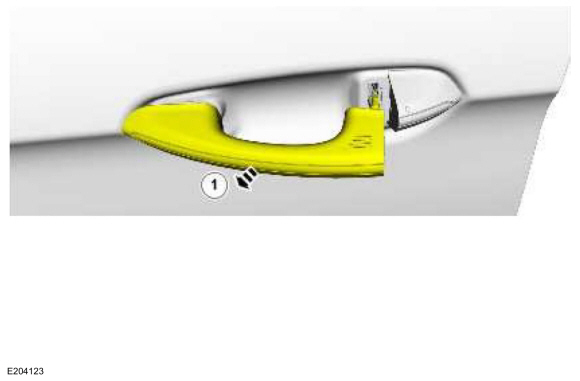

Open the latch using the exterior door handle.
-

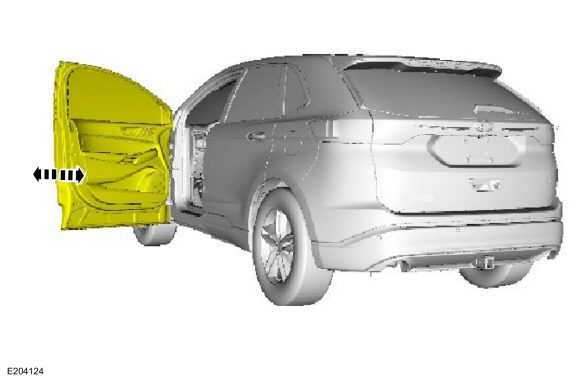

Open and close the door several times to circulate the lubricant inside the latch.
-
Open the door.
-

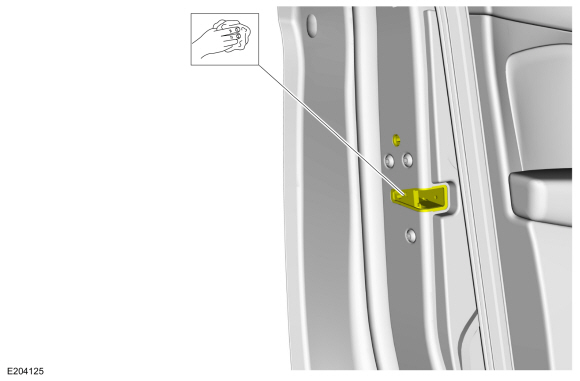

Wipe off any excess grease.
Programming
WARNING:
Before beginning any service procedure in this
manual, refer to health and safety warnings in section 100-00 General
Information...
