Ford Ecosport: Handles, Locks, Latches and Entry Systems / Description and Operation - Handles, Locks, Latches and Entry Systems - System Operation and Component Description

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Description and Operation - Handles, Locks, Latches and Entry Systems - System Operation and Component Description

System Operation

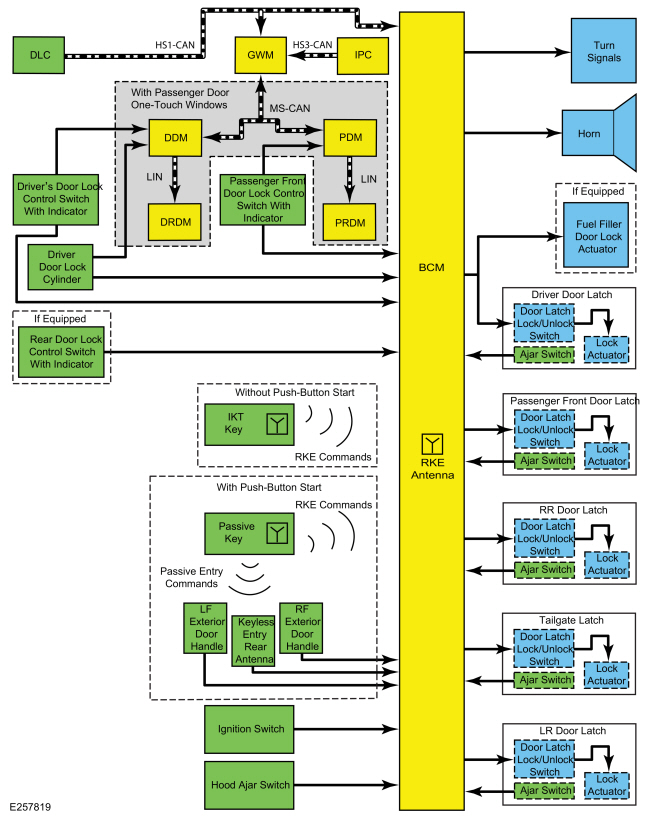

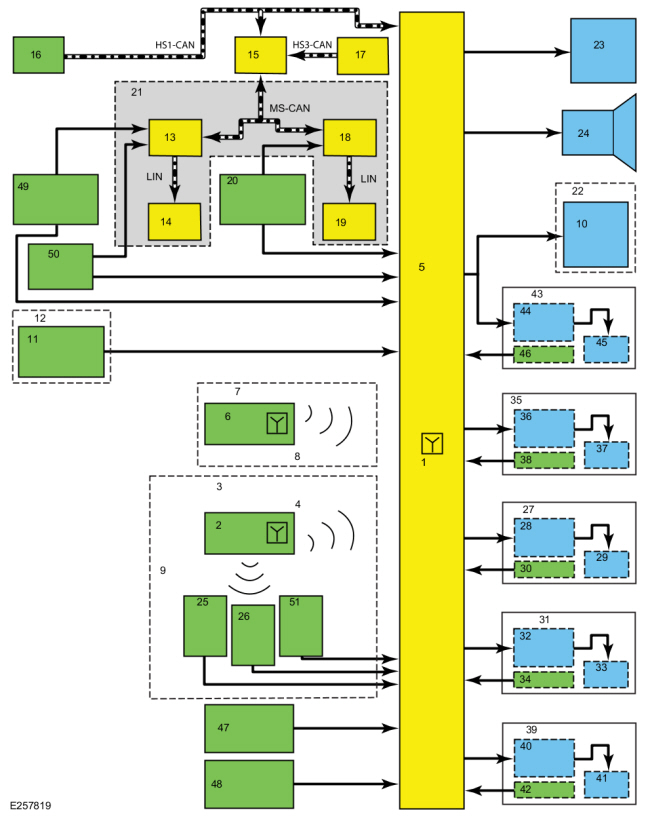

System Diagram


Item Description
1 RKE Antenna
2 Passive Key
3 With Push-Button Start
4 RKE Commands
5 BCM
6 IKT Key
7 Without Push-Button Start
8 RKE Commands
9 Passive Entry Commands
10 Fuel Filler Door Lock Actuator
11 Rear Door Lock Control Switch With Indicator
12 If Equipped
13 DDM
14 DRDM
15 GWM
16 DLC
17 IPC
18 PDM
19 PRDM
20 Passenger Front Door Lock Control Switch With Indicator
21 With Passenger Door One-Touch Windows
22 If Equipped
23 Turn Signals
24 Horn
25 Left Exterior Front Door Handle
26 Keyless Entry Rear Antenna
27 Right Rear Door Latch
28 Door Latch Lock/Unlock Switch
29 Lock Actuator
30 Ajar Switch
31 Tailgate Latch
32 Door Latch Lock/Unlock Switch
33 Lock Actuator
34 Ajar Switch
35 Passenger Front Door Latch
36 Door Latch Lock/Unlock Switch
37 Lock Actuator
38 Ajar Switch
39 Left Rear Door Latch
40 Door Latch Lock/Unlock Switch
41 Lock Actuator
42 Ajar Switch
43 Driver Door Latch
44 Door Latch Lock/Unlock Switch
45 Lock Actuator
46 Ajar Switch
47 Ignition Switch
48 Hood Ajar Switch
49 Driver Door Lock Control Switch With Indicator
50 Driver Door Lock Cylinder
51 Right Exterior Front Door Handle

Network Message Chart

  Module Network Input Messages - BCM (Without Passenger Door One-Touch Windows)


Broadcast Message Originating Module Message Purpose
Vehicle speed ABS module The BCM uses the vehicle speed data for autolock and auto-unlock features.

  Module Network Input Messages - BCM (With Passenger Door One-Touch Windows)


Broadcast Message Originating Module Message Purpose
Child lock request (if equipped)   DDM Provides the BCM with the child lock request when the child lock button is pressed on the master window control switch.
Door lock switch status DDM / PDM Provides the BCM with lock/unlock requests based on the input from the door lock control switch.
Driver door latch status   DDM Provides the BCM with the lock/unlock status of the driver door latch. The lock/unlock status is used for the illumination of the door lock status indicators.
Driver rear door latch status   DDM Provides the BCM with the lock/unlock status of the driver rear door latch. The lock/unlock status is used for the illumination of the door lock status indicators.
Message center feature configuration   IPC Provides the BCM configuration settings selected by the driver of the vehicle, such as autolock and auto-unlock settings.
Passenger front door latch status   PDM Provides the BCM with the lock/unlock status of the passenger front door latch. The lock/unlock status is used for the illumination of the door lock status indicators.
Passenger rear door latch status   PDM Provides the BCM with the lock/unlock status of the passenger rear door latch. The lock/unlock status is used for the illumination of the door lock status indicators.
Vehicle speed ABS module The BCM uses the vehicle speed data for autolock and auto-unlock features.

  Module Network Input Messages - DDM (With Passenger Door One-Touch Windows)


Broadcast Message Originating Module Message Purpose
Central lock command   BCM Provides the DDM with a command to lock or unlock the door. The DDM sends the lock or unlock command to the respective RDM .

  Module Network Input Messages - PDM (With Passenger Door One-Touch Windows)


Broadcast Message Originating Module Message Purpose
Central lock command   BCM Provides the PDM with a command to lock or unlock the door. The PDM sends the lock or unlock command to the respective RDM .

Autolock

The autolock feature locks all of the doors after all of the following have occurred:

  • All the doors are closed.
  • The ignition is on
  • The vehicle is shifted into any gear to put the vehicle in motion
  • The vehicle attains a speed greater than 20 km/h (12.4 mph)

The autolock feature can be enabled/disabled through the IPC message center.

Auto-Unlock

NOTE: The doors do not auto-unlock if the vehicle has been electronically locked before the driver door is unlocked.

The auto-unlock feature unlocks all of the doors when all of the following conditions have been met:

  • All the doors are closed and locked
  • The ignition was on
  • The vehicle was shifted to PARK and a speed greater than 20 km/h (12.4 mph) was achieved
  • The vehicle has come to a stop
  • The ignition transitions to accessory or off and, within 10 minutes, the driver door is opened

The auto-unlock feature can be enabled/disabled through the IPC message center.

Door Lock Switch Inhibitor

The door lock switch inhibitor is a BCM -controlled feature that prevents the interior door lock control switches from functioning when the following conditions are met:

  • The feature is enabled using the IPC
  • The ignition is off
  • The vehicle is not in accessory delay mode
  • The vehicle has come to a stop
  • The vehicle has been locked for more than 20 seconds using the key (RKE transmitter), mechanical key, or interior door lock control switch.

If the interior door lock control switches are pressed while inhibited, a chime sounds and “Switches Inhibited Security Mode” is displayed on the IPC message center.

The feature is disabled when any door is opened using the interior door handle.

For more information, refer to “Door Lock Switch Inhibitor” in the Owner's Literature.

Fuel Filler Door Lock (If Equipped)

Upon a command from the BCM , the fuel filler door actuator unlocks the fuel filler door in conjunction with the driver’s door latch.

The fuel filler door actuator locks the fuel filler door when the vehicle has been locked using the key (RKE transmitter), mechanical key, or interior door lock control switches.

Panic Alarm

The panic alarm feature provides audible and visual alarms which are evident from the exterior of the vehicle. When the panic alarm button is initially pressed, the panic alarm feature requests that the turn signals flash and the horn sounds for up to 3 minutes or until deactivation. The flashing of the outputs occurs simultaneously.

The panic alarm can only be activated when the ignition is off. This feature is disabled at all other times. Deactivation of an active panic alarm is accomplished when:

  • a second press of the RKE transmitter panic button is detected.
  • the ignition status changes from off.
  • a period of 2 minutes and 45 seconds have elapsed since the initial activation.

The panic alarm cannot be deactivated during the first 5 seconds of activation to avoid unintentional deactivation.

Passive Entry

The passive entry feature unlocks or locks the doors, fuel filler door (if equipped), and tailgate without having to use a mechanical key blade or the RKE transmitter feature.

With a programmed passive key within 1m (3.28ft) outside a door, touch the lock or unlock sensor on the exterior door handle. The doors lock or unlock depending upon which sensor was touched on the handle. The unlock sensor is located on the inside of the handle and the lock sensor is located on the outside top face of the handle.

With the 2-staged unlock feature enabled, the driver front door passive entry feature unlocks the driver door and fuel filler door (if equipped). With the 2-staged unlock feature disabled, the driver front door passive entry feature unlocks all doors, fuel filler door (if equipped), and tailgate. The passive entry feature always locks all doors, fuel filler door (if equipped), and tailgate when the lock sensor is touched for a half second. The passenger front door entry feature always locks or unlocks all doors, fuel filler door (if equipped), and tailgate.

When the BCM detects a lock or unlock sensor is touched on an exterior front door handle or the tailgate release button is pressed, it activates the corresponding low frequency antenna in the corresponding exterior front door handle and inside the cargo area. The low frequency antenna sends out a signal to the passive key. The low frequency signal activates the passive key and the passive key sends a high frequency signal back to the BCM . If requested action is performed if the BCM detects a programmed passive key.

With a programmed passive key within 1m (3.28ft) of the tailgate, press the release button to release the tailgate.

Power Door Locks

The BCM controls the door locks by using a series of relays (driver door unlock/passenger doors unlock/all doors lock) integrated within it. When the relays are not energized, ground is provided on both circuits to the lock motors within the latches. When an unlock relay energizes, voltage is provided to one side of the lock motor to unlock the door(s). When the lock relay energizes, the polarity is reversed and the motors lock the doors.

For vehicles with passenger door one-touch windows, the DDM and PDM send voltage signals to the door lock control switches. When a door lock control switch is pressed, the voltage signal is routed to ground, indicating a request to lock/unlock the doors. When the DDM or the PDM detects a lock or unlock request, a message is sent over the CAN to the BCM to lock or unlock the doors.

In the event of a power door lock failure, the doors can be individually locked through the manual door lock. The manual door lock is located on the rear edge of the door just above the door latch opening. For the doors on the left side of the vehicle, insert a key and turn clockwise to lock. For the doors on the right side of the vehicle, insert a key and turn counterclockwise to lock.

Additionally, there is a door lock LED indicator located on each door lock control switch. The indicators provide lock/unlock indication for all doors. They illuminate when the doors are locked and are off when the doors are unlocked. For detailed information of the door lock LED indicators,
Refer to: Handles, Locks, Latches and Entry Systems - System Operation and Component Description (501-14 Handles, Locks, Latches and Entry Systems, Description and Operation).

Based on input from the door lock control switches, the passive entry system and the RKE transmitter, the BCM unlocks the driver door, unlocks all the doors or locks all the doors.

The exterior lamps and horn provide visual and audible feedback when unlocking and locking the doors under certain circumstances.

RKE

The RKE feature is controlled by the BCM . When a button is pressed ( IKT or passive key), the Transmitter Identification Code (TIC) and RKE command is received by the BCM . If the BCM detects a programmed key, it carries out the command by controlling the door locks or activating the horn or turn signals as required.

The RKE system can be used perform any of the following:

  • Unlock the driver door
  • Unlock all doors
  • Lock all doors
  • Arm/disarm the perimeter alarm (if equipped)
  • Activate/deactivate the panic alarm
  • Global open and close (if equipped) the windows. For additional information, refer to “Global Opening and Closing” in the Owner's Literature.
  • Configure the staged unlock programming (2-stage unlock or global unlock)

The RKE transmitters for an IKT have a normal operating range of 30m (98.43ft) in an open air, no obstruction environment.

The RKE transmitters for a passive key have a normal operating range of 30m (98.43ft) in an open air, no obstruction environment.

The RKE transmitters and the BCM utilize a rolling code to prevent the code from being captured by a code grabber. The system advances the counter in the RKE transmitter and the BCM every time a RKE transmitter button is pressed.

The message center displays Key Battery Low Replace Soon when the battery in the key needs to be replaced.

With the 2-stage unlock feature enabled, the first request for unlocking the doors unlocks only the driver door and provides a long flash of the turn signals. If another unlock request is received within 3 seconds, all the doors are unlocked. This feature can be disabled so that all the doors unlock on the first press of the unlock button (global unlock).
Refer to: Staged Unlock Programming (501-14 Handles, Locks, Latches and Entry Systems, General Procedures).
Vehicles come from the factory with the 2-stage unlock feature disabled (single press unlocks all doors).

Smart Unlock (Without Push-Button Start)

The smart unlock feature prevents the doors from electronically locking with the key in the ignition lock cylinder. When the BCM receives a lock command from a door lock control switch and the key is detected in the ignition lock cylinder with the driver or front passenger door open, the BCM commands the doors to unlock.

To override the smart unlock feature and intentionally lock the doors with the key in the ignition lock cylinder, close all doors and lock the vehicle by pressing the lock button on another programmed IKT , or with another key using the driver door lock cylinder.

Smart Unlock (With Push-Button Start)

The smart unlock feature prevents the doors from electronically locking when a passive key is left inside the vehicle. When the doors are locked and then closed, the interior of the vehicle is scanned for a passive key. If a passive key is detected inside the vehicle when the doors are locked and closed, the doors unlock.

To override the smart unlock feature, lock the doors using the driver door lock cylinder or another programmed passive key.

Component Description

BCM

The BCM is the master module in control of the power door lock system. It is responsible for controlling the door and fuel filler door (if equipped) locks and tailgate. The BCM receives inputs for the door lock control switches, passive keys, and RKE commands.

The BCM requires PMI when replaced.

DDM (With Passenger Door One-Touch Windows)

The DDM monitors the door lock control switches and controls the operation of the power windows and power mirrors.

The DDM communicates with the PDM and the BCM over the CAN .

The DDM communicates (sends commands and receives feedback) with the DRDM through a LIN circuit.

The DDM requires PMI when replaced.

Door Latches

The door latches are sealed units and contain the door latch lock/unlock switch, lock actuator, and ajar switch. The door lock actuators operate in two directions, depending on the polarity of the voltage. The door latches can be lubricated, if needed.

Door Lock Control Switches

The door lock control switches are single pole, double throw switches. The DDM and PDM supply the voltage signals for the lock and unlock requests. When a switch is pressed to lock or unlock, the corresponding input circuit is routed to ground, indicating a request to lock or unlock the doors.

DRDM (With Passenger Door One-Touch Windows)

The DRDM controls the operation of the power windows in the rear doors.

The DRDM communicates (sends feedback and receives commands) with the DDM through a LIN circuit.

The DRDM does not require PMI when replaced.

Exterior Front Door Handles

The exterior front door handles contain a keyless entry antenna and capacitive touch sensor(s). The antennas and lock/unlock sensors are wired to the BCM . When activated, the antenna transmits a low frequency signal to activate a passive key.

Fuel Filler Door

The fuel filler door lock actuator is activated by the BCM in conjunction with the driver’s door lock.

IKT

The IKT incorporates both the PATS functions and the RKE transmitter functions in a single device.

During key programming procedures, the PATS and RKE transmitter Identification (ID) of an IKT are both programmed. A maximum of 8 keys can be programmed.

Liftgate Latch

The liftgate latch is a sealed unit and contains the latch lock/unlock switch and ajar switch. The lock actuator is serviced separately. The lock actuator operates in two directions, depending on the polarity of the voltage. The latch can be lubricated, if needed.

Passive Key

The passive key incorporates both the PATS functions and the RKE transmitter functions in a single device.

During key programming procedures, the PATS and RKE transmitter Identification (ID) of a passive key are both programmed. A maximum of 4 passive keys can be programmed.

In the event the passive key battery fails:

  • a key blade within the passive key can be used to unlock the door manually.
  • the passive key must be placed in the backup slot to start the vehicle.

PDM (With Passenger Door One-Touch Windows)

The PDM monitors the door lock control switches and controls the operation of the power windows and power mirrors.

The PDM communicates with the PDM and the BCM over the CAN .

The PDM communicates (sends commands and receives feedback) with the PRDM through a LIN circuit.

The PDM requires PMI when replaced.

PRDM (With Passenger Door One-Touch Windows)

The PRDM controls the operation of the power windows in the rear doors.

The PRDM communicates (sends feedback and receives commands) with the PDM through a LIN circuit.

The PRDM does not require PMI when replaced.

Keyless Entry Rear Antenna

For information on the keyless entry rear antenna,
Refer to: Passive Anti-Theft System (PATS) - System Operation and Component Description (419-01C Passive Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button Start, Description and Operation).

The keyless entry rear antenna is wired to the BCM . When activated, it transmits a low frequency signal to activate a passive key.

    Description and Operation - Handles, Locks, Latches and Entry Systems - Overview
