Ford Ecosport: Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Variable Camshaft Timing (VCT) Oil Control Solenoid

Ford Ecosport 2014-2025 Service and Repair Manual / Engine / Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Variable Camshaft Timing (VCT) Oil Control Solenoid

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP
WSS-M2C945-B1


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1.   WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00) .
  1. Remove the valve cover.
    Refer to: Valve Cover (303-01C Engine - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).

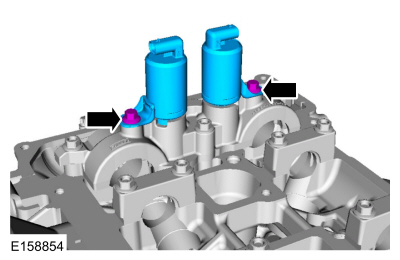

  1. Remove the bolts and the VCT oil control solenoids.
    Torque: 89 lb.in (10 Nm)

Installation

  1. To install, reverse the removal procedure.

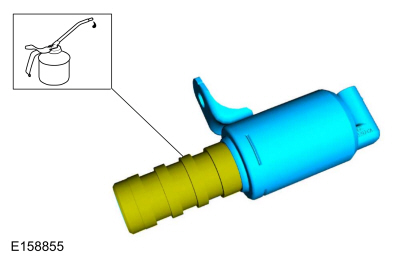

    Lubricate the O-ring with clean engine oil.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
