Ford Ecosport: Front Disc Brake / Removal and Installation - Brake Disc

Ford Ecosport 2014-2025 Service and Repair Manual / Brake System / Front Disc Brake / Removal and Installation - Brake Disc

Materials

Name	Specification
Motorcraft® Metal Brake Parts Cleaner PM-4-A, PM-4-B, APM-4-C	-

Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

NOTICE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

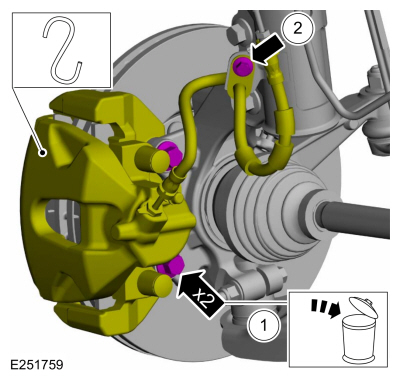

Remove and position aside the brake caliper and anchor plate.
1. NOTE: Make sure that new bolts are installed.
  Remove the brake caliper anchor plate bolts. Discard the bolts.
  Torque: 81 lb.ft (110 Nm)
1. Remove the brake flexible hose bracket bolt.
  Torque: 18 lb.ft (25 Nm)

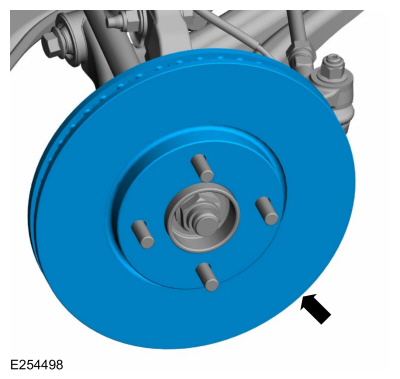

Remove the brake disc.

NOTE: Make sure that the mating faces are clean and free of foreign material.
Clean the brake disc-to-wheel hub mating surfaces.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B, APM-4-C

Installation

NOTICE: Make sure that the brake hose is not twisted when installing the brake caliper or damage to the brake flexible hose may occur.
To install, reverse the removal procedure.

Apply the brake pedal several times to verify correct brake system operation.

Removal and Installation - Brake Caliper Anchor Plate

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake pads. Refer to: Brake Pads (206-03 Front Disc Brake, Removal and Installation)...

Removal and Installation - Brake Disc Shield

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the brake disc. Refer to: Brake Disc (206-03 Front Disc Brake, Removal and Installation)...
