Ford Ecosport: Roof Opening Panel / Removal and Installation - Roof Opening Panel Motor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

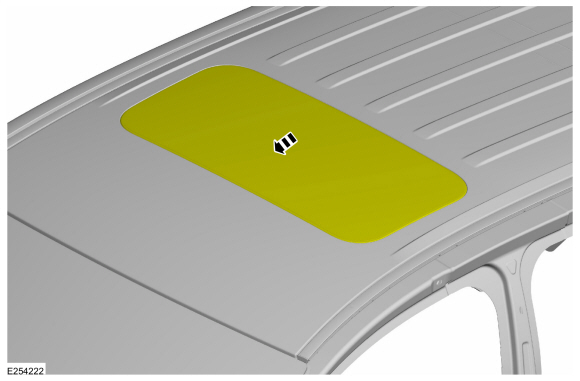

Place the roof opening panel glass to the fully CLOSE position. If the roof opening panel motor is inoperative
Refer to: Roof Opening Panel Manual Opening (501-17 Roof Opening Panel, General Procedures).
-
Place the roof opening panel shield to the fully OPEN position.
-

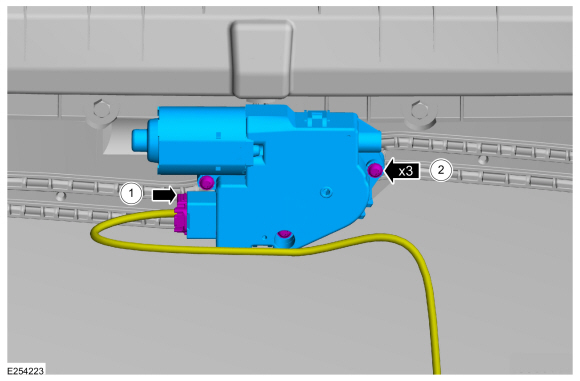

Remove the roof opening panel motor.
-
Disconnect the roof opening panel motor electrical connector.
-
Remove the roof opening panel motor to the roof
opening panel frame retainers and remove the roof opening panel motor.
Torque:
31 lb.in (3.5 Nm)
Installation
-
NOTE:
When installing the roof opening panel motor, it may
be necessary to turn the roof opening panel motor slightly to engage
the drive splines.
To install, reverse the removal procedure.
-
Initialize the power roof opening panel.
Refer to: Power Roof Opening Panel Initialization (501-17 Roof Opening Panel, General Procedures).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Place the roof opening panel shield to the fully OPEN position...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Remove the rear bumper cover...
Other information:
Special Tool(s) /
General Equipment
Resistance Spotwelding Equipment
Spot Weld Drill Bit
Locking Pliers
Materials
Name
Specification
Seam SealerTA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-
Removal
NOTE:
Factory welds may be substituted with resistance or metal
inert gas (MIG) plug welds...
