Ford Ecosport: Roof Opening Panel / Removal and Installation - Roof Opening Panel Rear Drain Hose

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Roof Opening Panel / Removal and Installation - Roof Opening Panel Rear Drain Hose

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).
  1. Remove the headliner.
    Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

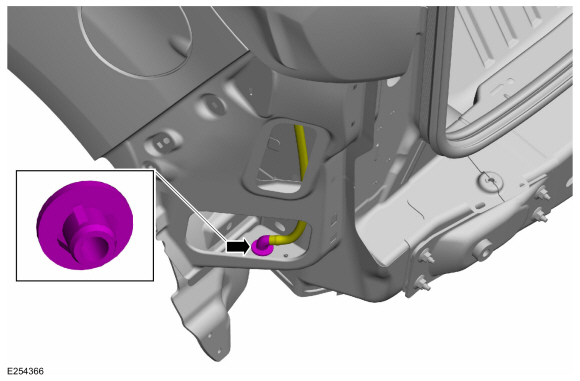

  1. Disconnect the roof opening panel rear drain hose.
  1. Detach the retainers and remove the roof opening panel rear drain hose.

Installation

  1. To install, reverse the removal procedure.
