Ford Ecosport: Wipers and Washers / Removal and Installation - Rear Window Wiper Motor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear window wiper pivot arm.
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

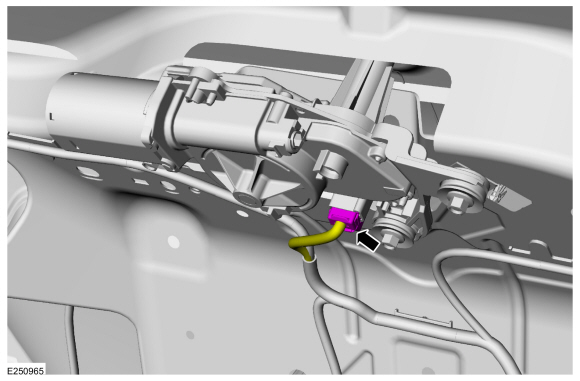

Disconnect the rear window wiper motor electrical connector.
-

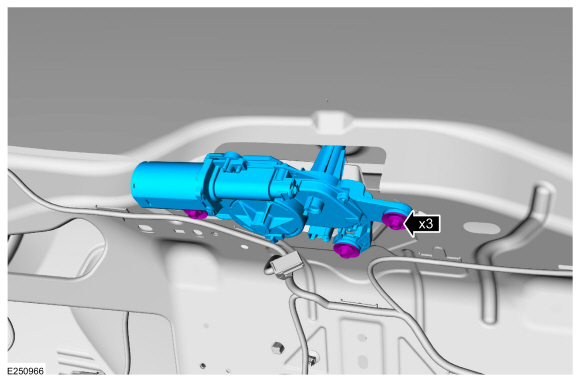

Remove the bolts and the rear window wiper motor.
Torque:
62 lb.in (7 Nm)
Installation
-
To install, reverse the removal procedure.
