Ford Ecosport: Wipers and Washers / Removal and Installation - Rear Window Wiper Pivot Arm

Ford Ecosport 2014-2025 Service and Repair Manual / Body and Paint / Wipers and Washers / Removal and Installation - Rear Window Wiper Pivot Arm

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTICE: Make sure that the motor is in the park position.

NOTE: Removal steps in this procedure may contain installation details.

Pivot the cover to access the wiper pivot arm nut.

Remove the rear widow wiper pivot arm nut.
Torque: 124 lb.in (14 Nm)

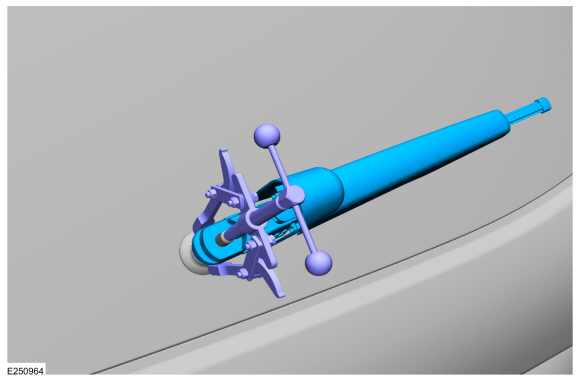

Using a puller, remove the rear widow wiper pivot arm.
Use the General Equipment: Two Leg Puller

Installation

To install, reverse the removal procedure.
