Ford Ecosport: Interior Trim and Ornamentation / Removal and Installation - Rear Door Trim Panel

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Interior Trim and Ornamentation / Removal and Installation - Rear Door Trim Panel

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LH shown, RH similar.

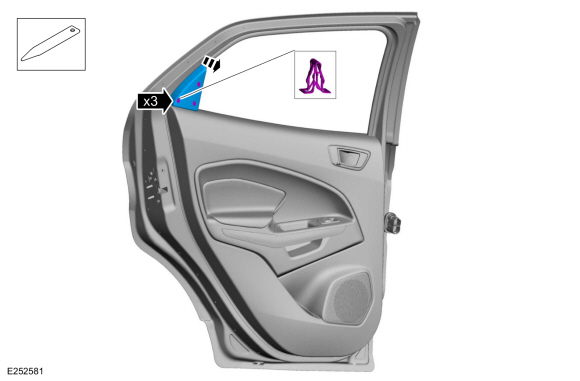

  1. Release the clips and remove the rear door sail panel.
    Use the General Equipment: Interior Trim Remover

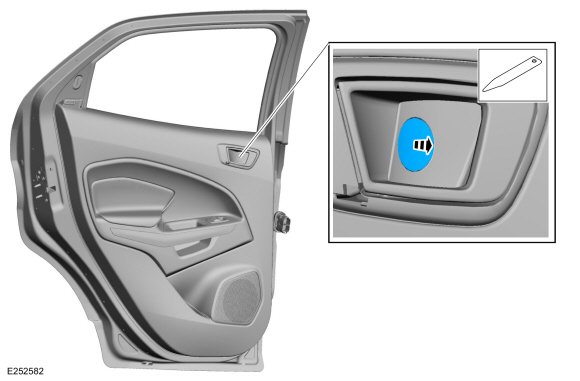

  1. Remove the interior rear door handle screw cover.
    Use the General Equipment: Interior Trim Remover

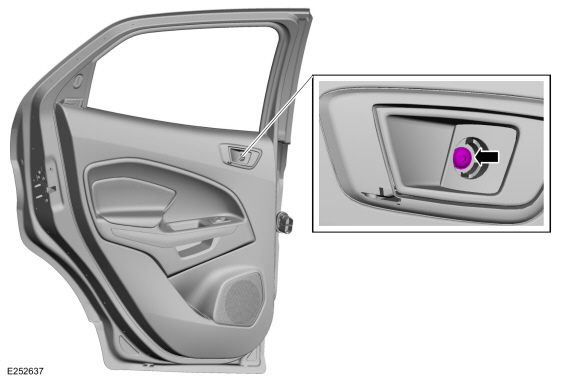

  1. Remove the interior rear door handle screw.

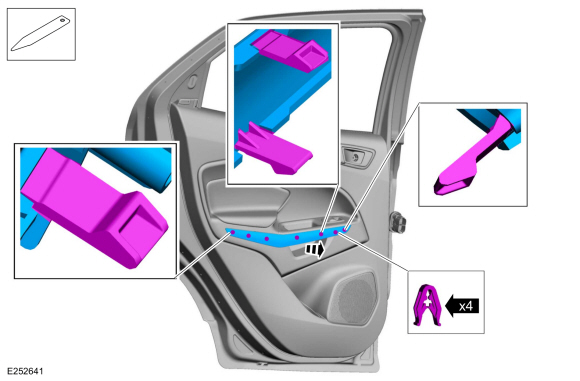

  1. Release the clips and the tabs and remove the armrest side trim panel.
    Use the General Equipment: Interior Trim Remover

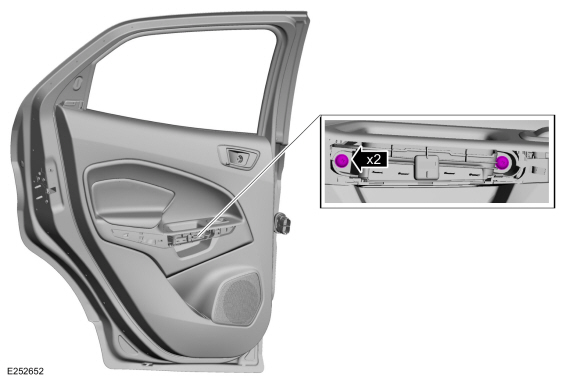

  1. Remove the door trim panel screws.

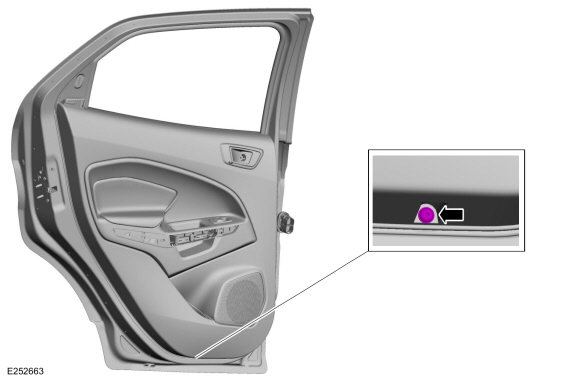

  1. Remove the door trim panel lower screw.

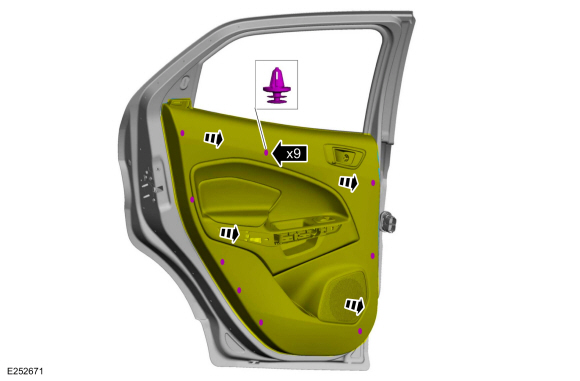

  1. Position the door trim panel aside.

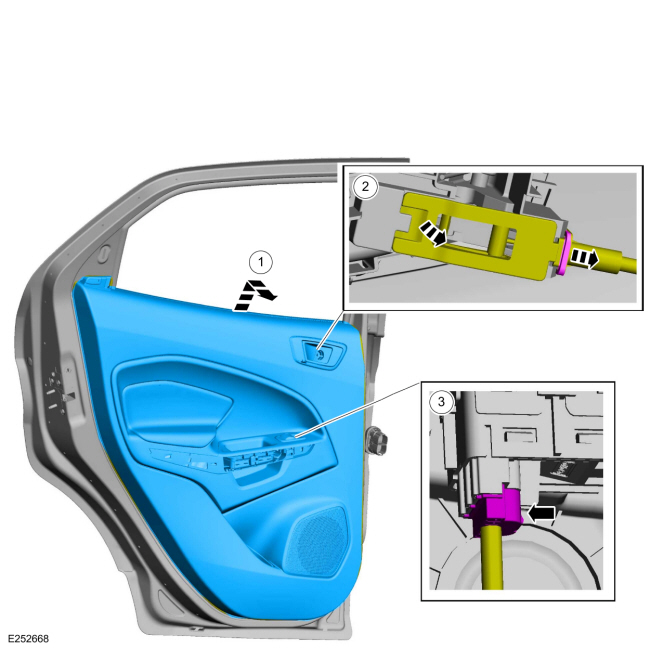

  1. Remove the rear door trim panel. .
    1. Lift upward and outward to release the door trim panel.
    1. Release the tab and position the rear door latch cable aside.
    1. Disconnect the rear door window control switch electrical connector.

Installation

  1. To install, reverse the removal procedure.
    • Transfer parts as necessary.
