Ford Ecosport: Information and Entertainment System - General Information / Removal and Installation - Media Hub

Ford Ecosport 2014-2026 Service and Repair Manual / Information and Entertainment Systems / Information and Entertainment System - General Information / Removal and Installation - Media Hub

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

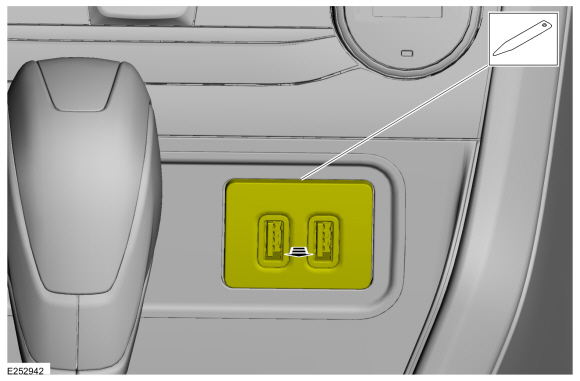

  1. Using a non-marring tool position the media hub out.
    Use the General Equipment: Interior Trim Remover

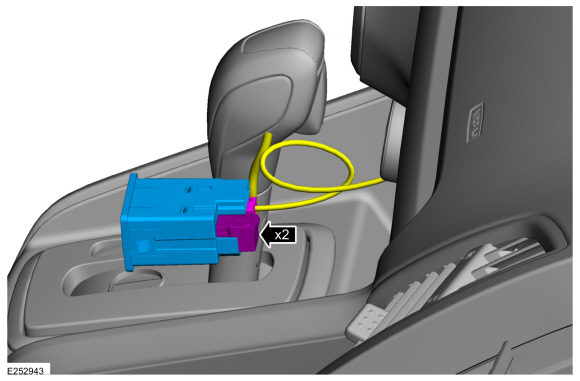

  1. Disconnect the electrical connectors and remove the media hub.

Installation

  1. To install, reverse the removal procedure.
