Removal

Remove the components for access.
1. Remove the IPC .
  Refer to: Instrument Panel Cluster (IPC) (413-01 Instrumentation, Message Center and Warning Chimes, Removal and Installation).
1. Remove the FDIM .

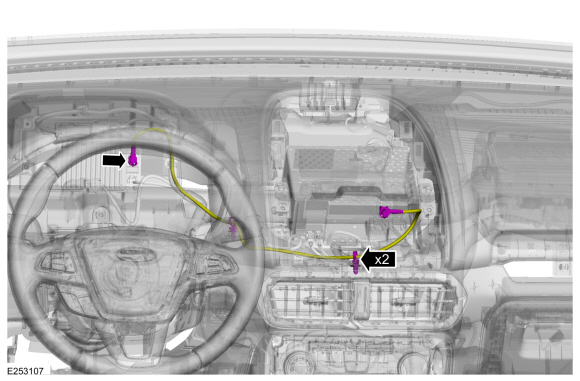

Separate the wiring guides, disconnect the LVDS cable connector and remove the LVDS cable.

Installation

To install, reverse the removal procedure.
