Ford Ecosport: Interior Trim and Ornamentation / Removal and Installation - Front Door Trim Panel
Special Tool(s) /
General Equipment
Removal
NOTE:
LH shown, RH similar.
-

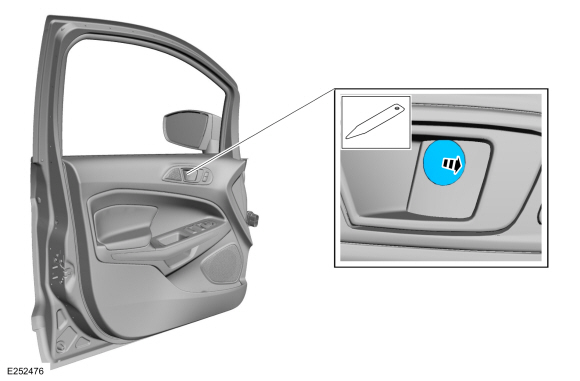

Remove the front interior door handle screw cover.
Use the General Equipment: Interior Trim Remover
-

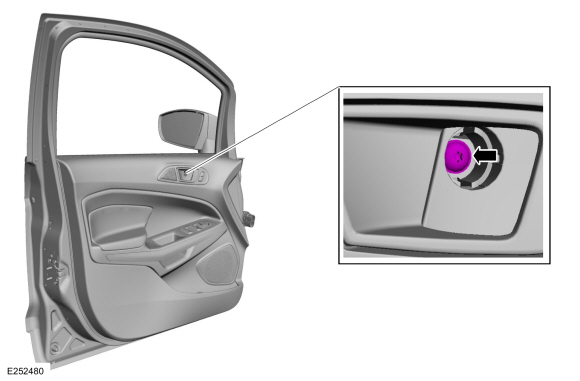

Remove the front interior door handle screw.
-

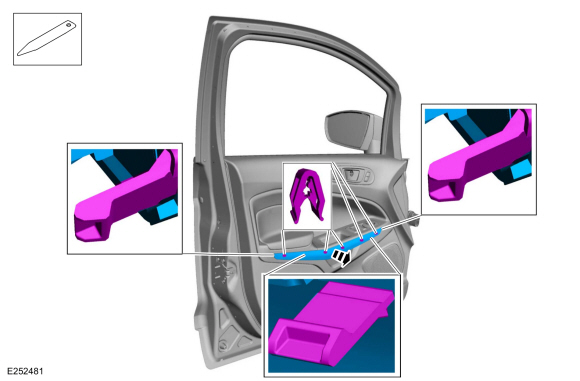

Release the clips and the tabs and remove the armrest side trim panel.
Use the General Equipment: Interior Trim Remover
-

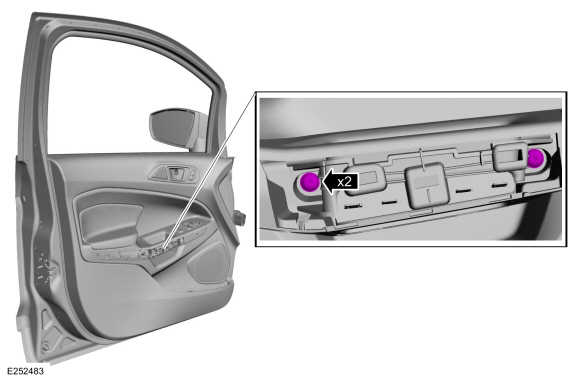

Remove the door trim panel screws.
-

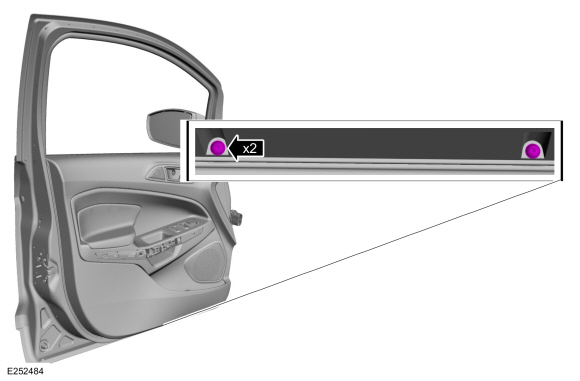

Remove the door trim panel lower screws.
-

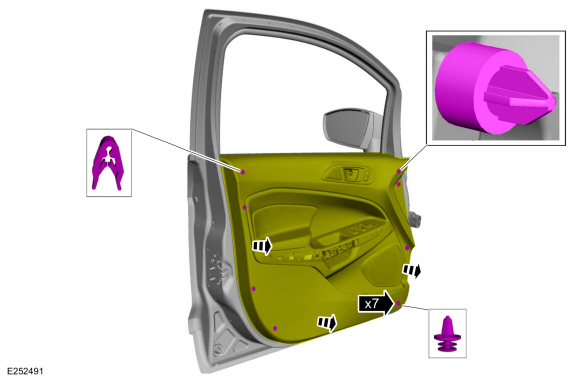

Release the clips and position the front door trim panel aside.
-
Remove the front door trim panel.
-
Lift upward and outward on the front door trim panel.
-
Release the tab and position the front door latch cable aside.
-
If equipped.
Disconnect the front door tweeter speaker electrical connector.
-
Disconnect the door lock control switch electrical connector.
-
Disconnect the window control switch electrical connector(s).
Installation
-
To install, reverse the removal procedure.
-
Transfer parts as necessary.
