Ford Ecosport: Exterior Trim and Ornamentation / Removal and Installation - Front Door Moulding

Ford Ecosport 2014-2025 Service and Repair Manual / Body and Paint / Exterior Trim and Ornamentation / Removal and Installation - Front Door Moulding

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

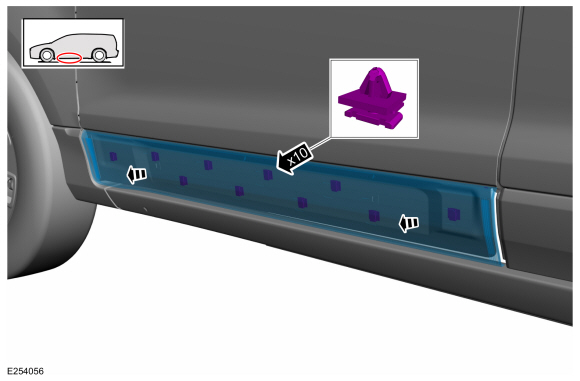

  1. NOTICE: Only use moderate force.

    Using a non-marring trim removal tool, disengage the retainer clips, release adhesive tape and remove moulding.

Installation

  1. To install, reverse the removal procedure.
