Ford Ecosport: Accessory Drive - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Accessory Drive Belt Tensioner
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-

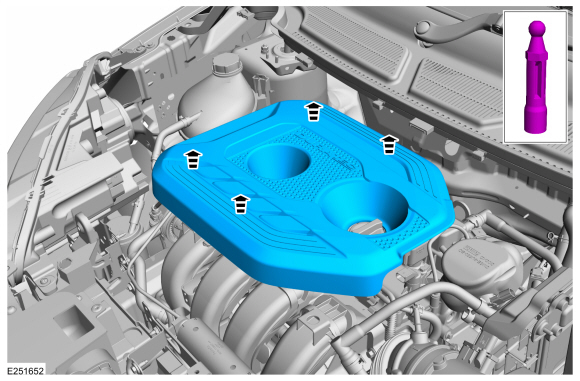

Remove the engine appearance cover.
-
WARNING:
The tensioner is under spring tension. Be careful
when handling the tensioner. Failure to follow this instruction may
result in personal injury.
-
Rotate the accessory drive belt tensioner counter clockwise.
-
Position aside the accessory drive belt.
-

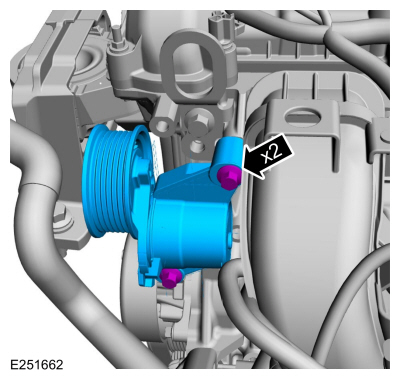

Remove the bolts and the accessory drive belt tensioner.
Torque:
18 lb.ft (25 Nm)
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the A/C drive belt.
Refer to: Air Conditioning (A/C) Compressor Belt (303-05C Accessory
Drive - 2...
Special Tool(s) /
General Equipment
303-1252Stretchy Belt Remover/ Installer ToolTKIT-2006UF-FLMTKIT-2006UF-ROW
303-1419Remover, 3...
