Ford Ecosport: Seatbelt Systems / General Procedures - Seatbelt Twisted at the Seatbelt Guide
Adjustment
NOTE:

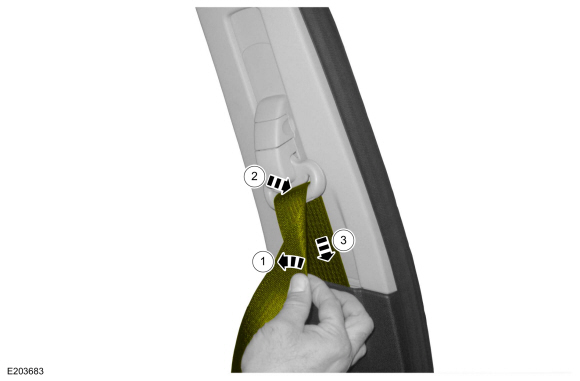

Typical D-ring shown, others similar.
-
If required, remove the necessary trim panel(s).
-
-
Fold the seatbelt as indicated.
-
Feed the folded portion of the seatbelt into the D-ring.
-
Pull the seatbelt through the D-ring to remove the twist in the seatbelt.
