Ford Ecosport: Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Transmission Fluid Cooler

Ford Ecosport 2014-2026 Service and Repair Manual / Automatic Transmission / Transmission Cooling - 6-Speed Automatic Transmission – 6F35 / Removal and Installation - Transmission Fluid Cooler

Removal

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Radiator (303-03B Engine Cooling - 1.5L Duratec (90kW/120PS) – I3, Removal and Installation).
Refer to: Radiator (303-03C Engine Cooling - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).

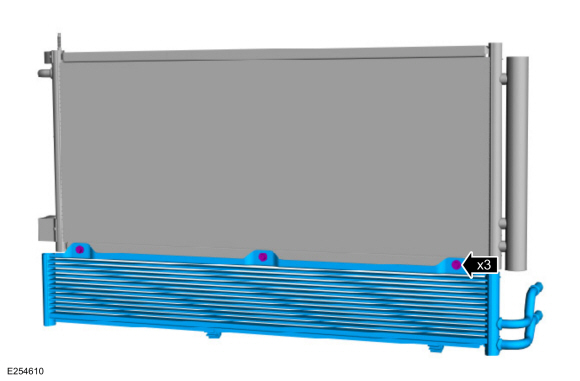

Remove the bolts and the transmission fluid cooler.
Torque: 62 lb.in (7 Nm)

Installation

To install, reverse the removal procedure.
