Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Rear Door Window Regulator
Special Tool(s) /
General Equipment
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
For non-functional front door window regulators and motors
with the window in the 40 mm open to full closed position, cut the front
door window regulator cables to allow window movement.
-
Remove the rear door window control switch.
Refer to: Rear Door Window Control Switch (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-
Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

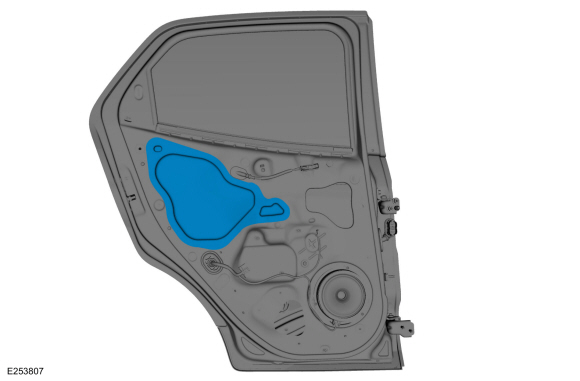

Remove the rear door watershield.
-

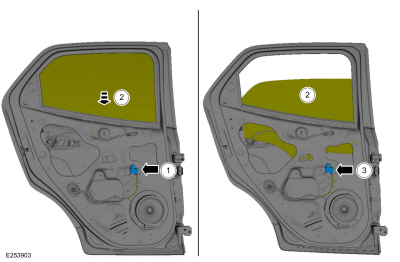

Lower the rear door window glass to the half down position.
-
Connect the rear door window control switch.
-
Lower the rear door window glass to the half down position.
-
Disconnect the rear door window control switch.
-

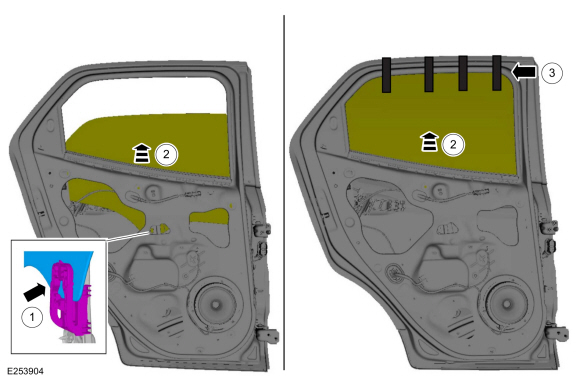

Tape the rear door window glass in the full up position.
-
Release the rear door window glass retaining clip from the rear door window regulator.
-
Raise the rear door window glass to the full up position.
-
Tape the rear door window glass in place.
Use the General Equipment: Adhesive Tape
-

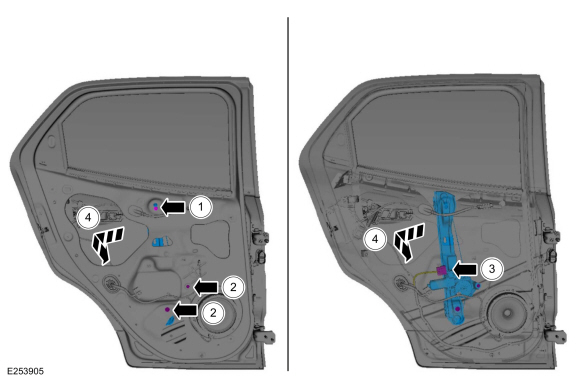

Remove the rear door window regulator.
-
Loosen the nut on the rear door window regulator.
Torque:
62 lb.in (7 Nm)
-
Remove the bolts from the rear door window regulator.
Torque:
62 lb.in (7 Nm)
-
Disconnect the electrical connector from the rear door window regulator.
-
Remove the rear door window regulator.
Installation
-
To install, reverse the removal procedure.
-
If the door is equipped with one touch up/down.
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear door window regulator.
Refer to: Rear Door Window Regulator (501-11 Glass, Frames and Mechanisms, Removal and Installation)...
