Removal

  WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: LH side curtain airbag shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Pyrotechnic Device Health and Safety Precautions (100-00 General Information, Description and Operation).
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
  1. Remove the headliner.
    Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

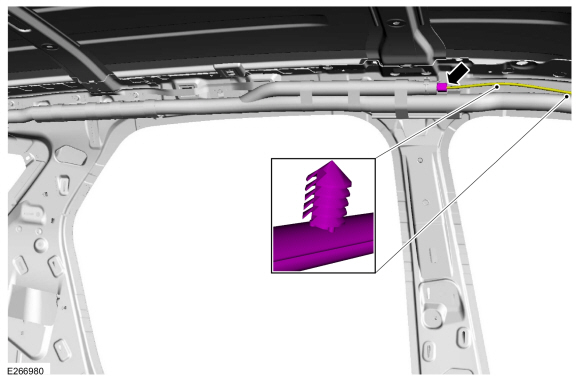

  1. Disconnect the side curtain airbag electrical connector and release the wiring harness retainers.

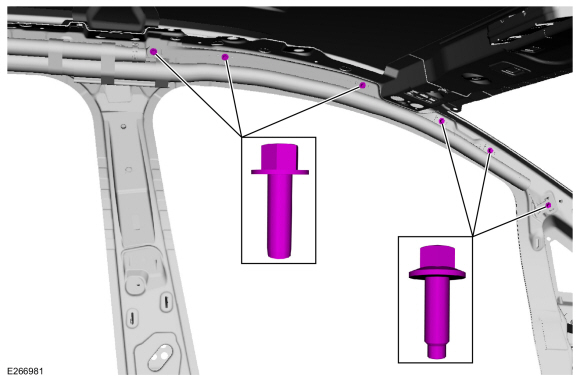

  1. Remove the side curtain airbag front screws.
    Torque: 80 lb.in (9 Nm)

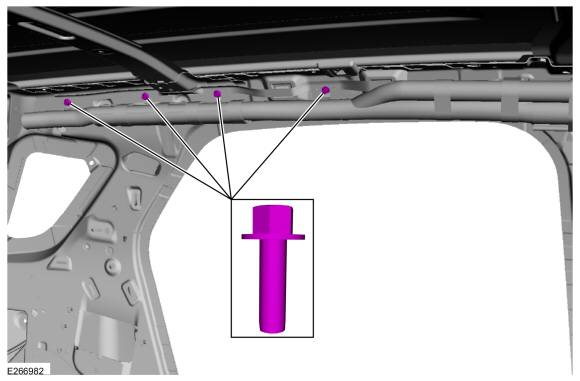

  1. Remove the side curtain airbag rear screws.
    Torque: 80 lb.in (9 Nm)

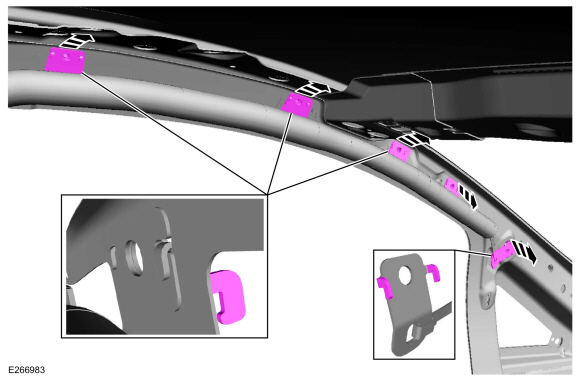

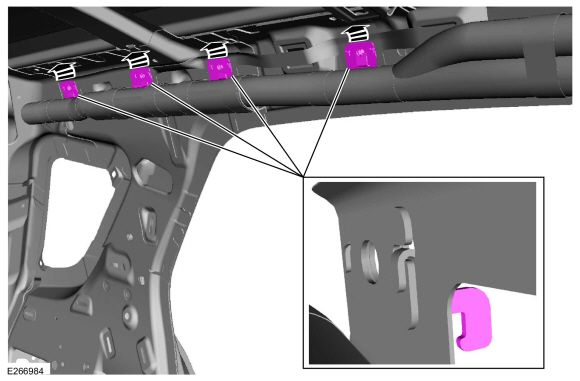

  1. Slide the rear retainers up and rotate them out of the sheet metal.
    • Slide the front hooked retainers up and rotate them out of the sheet metal.
    • Separate the remaining retainer.
    1. Rotate the top of the retainer and disengage the T-tab from the sheet metal.

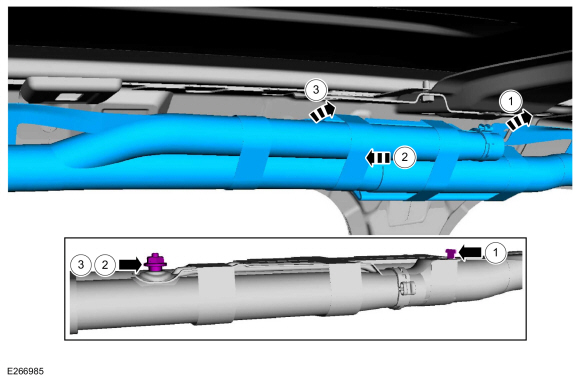

    1. Slide the side curtain airbag rearward.
    1. Lift and pull out, removing the side curtain airbag.

Installation

  WARNING: Incorrect repair techniques or actions can cause an accidental pyrotechnic device deployment. Make sure the supplemental restraint and pedestrian protection system (if equipped) is depowered before reconnecting the component. Refer to the depowering General Procedure in section 501-20B. Failure to precisely follow depowering instructions could result in serious personal injury from an accidental deployment.

  WARNING: Before installing a Safety Canopy or side air curtain assembly, inspect the roofline for any damage. If necessary, the sheet metal must be reworked to its original condition and structural integrity. Install new fasteners if damaged and remove foreign material. Failure to follow these instructions may result in the Safety Canopy or side air curtain deploying incorrectly, which increases the risk of serious personal injury or death in a crash.

  WARNING: Anytime the Safety Canopy or side air curtain has deployed, a new headliner and new roof pillar upper trim panels with attaching hardware must be installed. Make sure the headliner includes the word AIRBAG where it meets each roof B-pillar trim panel. Remove any other damaged components or hardware and replace with new. Always use new torque-prevailing type J-nuts when installing the Safety Canopy. Failure to follow these instructions may result in the Safety Canopy or side air curtain deploying incorrectly and increases the risk of serious personal injury or death in a crash.

NOTE: During installation, ensure that the side curtain airbag is not twisted 360 ° between attachment points.

  1. To install, reverse the removal procedure.
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
