Ford Ecosport: Rear Seats / Removal and Installation - Rear Seat Latch

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Rear Seats / Removal and Installation - Rear Seat Latch

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear seat backrest.
    Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation).

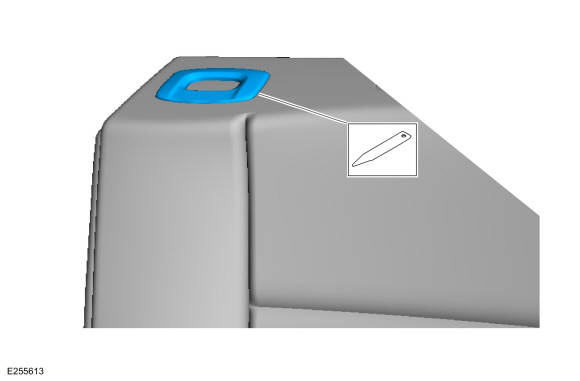

  1. Remove the rear seat backrest release bezel.
    Use the General Equipment: Interior Trim Remover

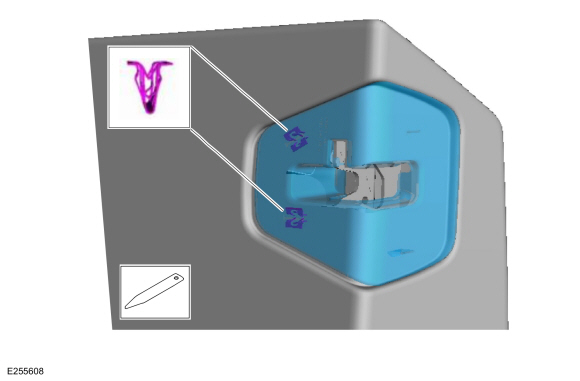

  1. Remove the rear seat latch bezel.
    Use the General Equipment: Interior Trim Remover

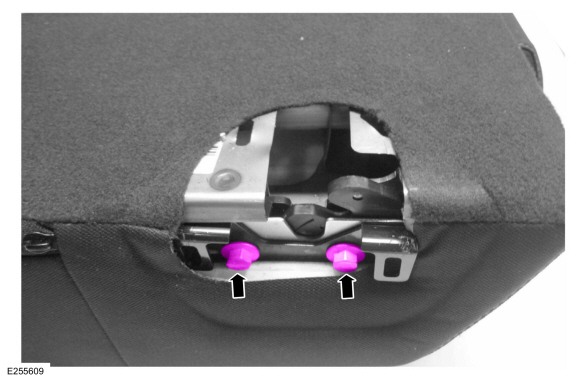

  1. Remove the rear seat latch bolts.
    Torque: 18 lb.ft (25 Nm)
  1. Remove the rear seat latch.

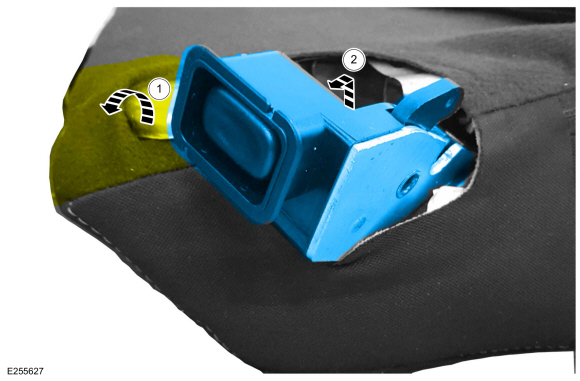

    1. Position the rear seat backrest cover behind the backrest frame.
    1. Remove the rear seat latch.

Installation

  1. To install, reverse the removal procedure.
