Ford Ecosport: Exterior Lighting / Removal and Installation - Front Fog Lamp Bulb
Special Tool(s) /
General Equipment
Removal
NOTE:
LH side shown, RH side similar.
NOTE:
Removal steps in this procedure may contain installation details.
-

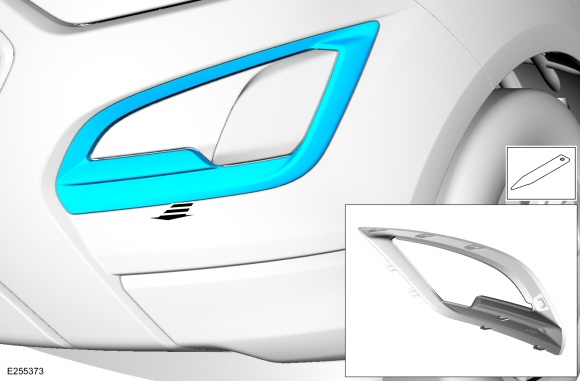

Remove the combination front fog lamp turn signal assembly bezel.
Use the General Equipment: Interior Trim Remover
-

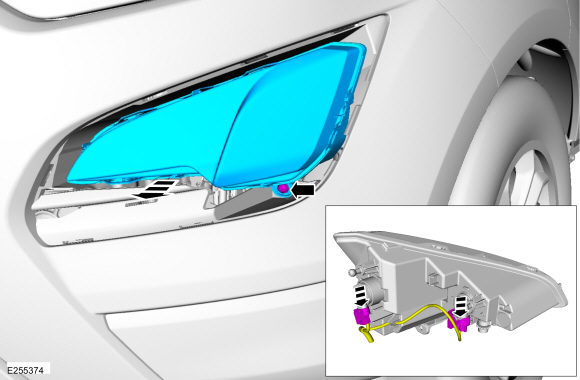

Remove the combination front fog lamp turn signal assembly screw and the assembly.
-
Disconnect the electrical connectors.
-

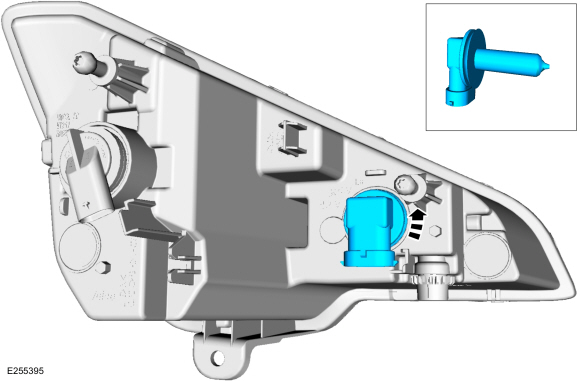

Remove the bulb.
Installation
-
To install, reverse the removal procedure.
