Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation).
    1. Release the seat backrest lower J-clip.
    1. On both sides.
      Unzip the backrest cover and fold upward.
    1. Remove the armrest bolts.
      Torque: 89 lb.in (10 Nm)

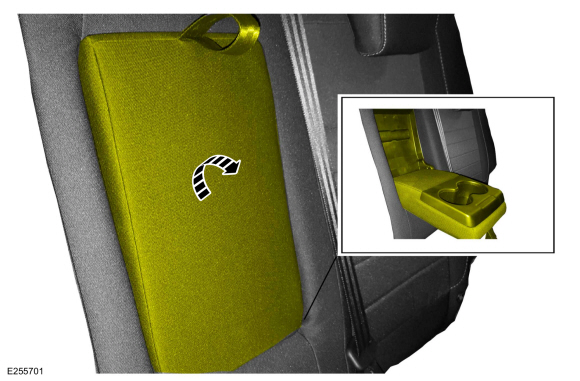

  1. Lower the armrest.
  1. Detach the rear seat backrest cover retainers and remove the rear seat armrest.

Installation

  1. To install, reverse the removal procedure.
