Ford Ecosport: Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Fuel Tank Pressure Sensor and Tube
Ford Ecosport 2014-2025 Service and Repair Manual / Engine / Evaporative Emissions - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Fuel Tank Pressure Sensor and Tube
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
-

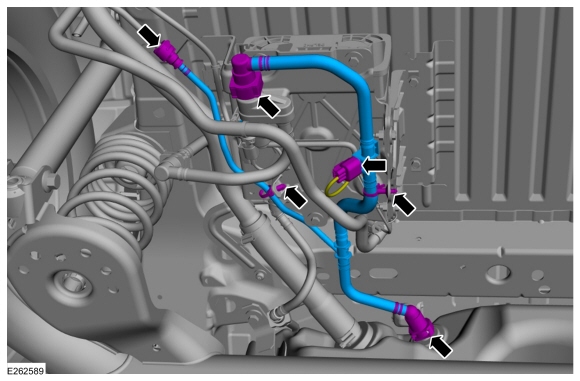

Detach the retainers and disconnect the electrical connector.
-
Release the spring lock coupling.
Refer to: Spring Lock Couplings (310-00A Fuel System - General Information - 1.0L EcoBoost (92kW/125PS), General Procedures).
-
Release the quick connect couplings and remove the fuel tank pressure sensor and tube.
Refer to: Quick Release Coupling (310-00A Fuel System - General Information - 1.0L EcoBoost (92kW/125PS), General Procedures).
-
Detach the retainers and disconnect the electrical connector.
 |
Installation
-
To install, reverse the removal procedure.
