Ford Ecosport: Passive Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button Start / Removal and Installation - Passive Anti-Theft System (PATS) Front Antenna
Ford Ecosport 2014-2025 Service and Repair Manual / Electronic Feature Group / Passive Anti-Theft System (PATS) - Vehicles With: Keyless Entry and Push Button Start / Removal and Installation - Passive Anti-Theft System (PATS) Front Antenna
Removal
-
Remove the floor console.
Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).
-

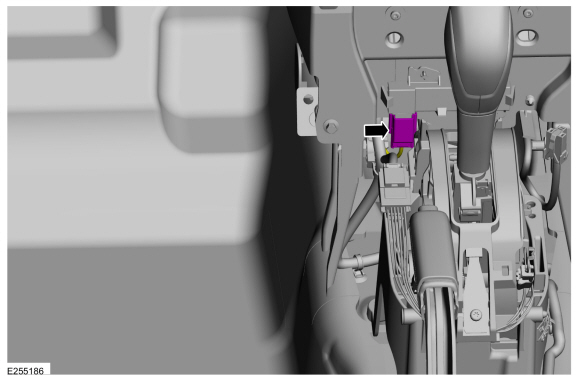

Disconnect the PATS front antenna electrical connector.
 |
-

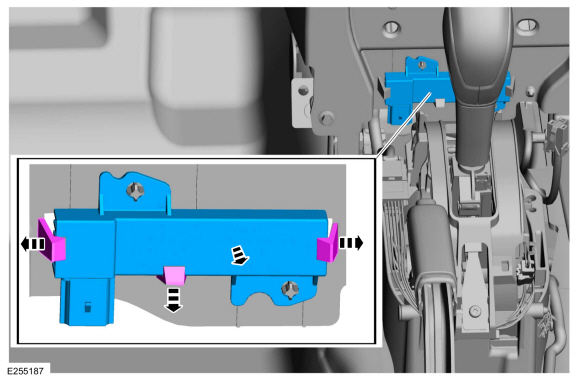

Release the tabs and remove the PATS front antenna.
 |
Installation
-
To install, reverse the removal procedure.
