Ford Ecosport: Climate Control System - General Information / Removal and Installation - Passenger Side Register

Ford Ecosport 2014-2026 Service and Repair Manual / Climate Control System / Climate Control System - General Information / Removal and Installation - Passenger Side Register

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

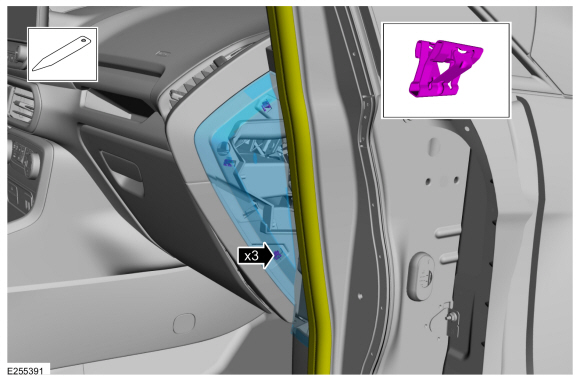

  1. Position the weather strip aside, release the clips and remove the RH instrument panel finish panel.
    Use the General Equipment: Interior Trim Remover

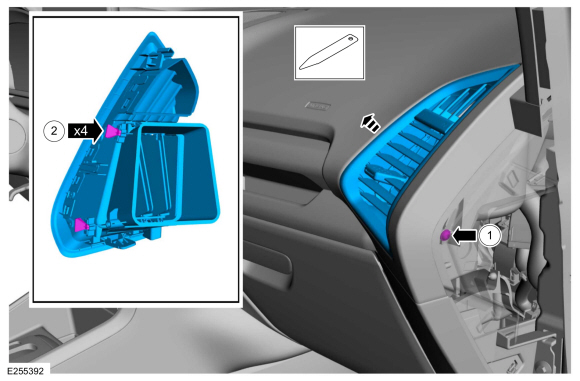

    1. Remove the screw.
    1. Release the clips and remove the passenger side register.
      Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
