Ford Ecosport: Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Camshaft Position (CMP) Sensor

Ford Ecosport 2014-2026 Service and Repair Manual / Engine / Electronic Engine Controls - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Camshaft Position (CMP) Sensor

Materials

Name Specification
Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil
XO-5W20-Q1SP		 WSS-M2C945-B1


Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the engine appearance cover.

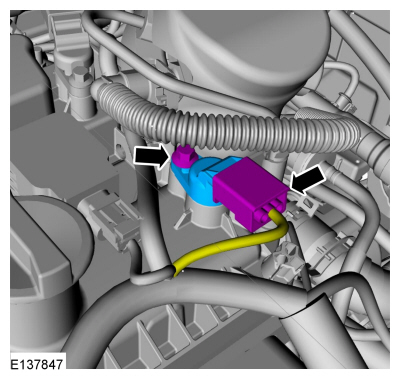

  1. LH CMP sensor
    Disconnect the electrical connector. Remove the retainer and the CMP sensor.
    Torque: 53 lb.in (6 Nm)

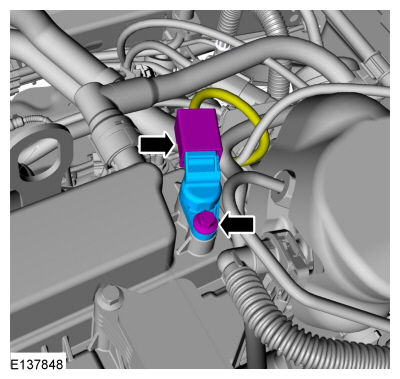

  1. RH CMP sensor
    Disconnect the electrical connector. Remove the retainer and the CMP sensor.
    Torque: 53 lb.in (6 Nm)

Installation

  1. To install, reverse the removal procedure.

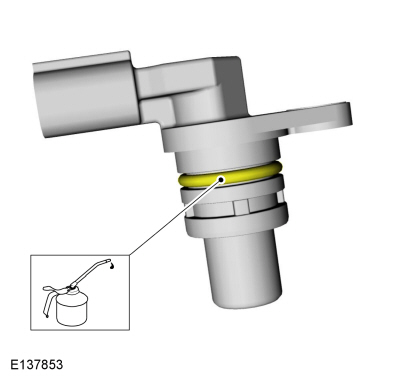

    Lubricate the O-ring seal with the clean engine oil.
    Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
