Ford Ecosport: Instrument Panel and Console / Removal and Installation - Auxiliary Power Point

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Instrument Panel and Console / Removal and Installation - Auxiliary Power Point

Special Tool(s) / General Equipment

501-194
Remover, Power Point
TKIT-2014D-ROW2
TKIT-2014D-FL_ROW

Removal

  1. Open the power point cover.
  1. Position the power point extractor so that it engages in the adjacent slots in the power point socket.
    Use Special Service Tool: 501-194  Remover, Power Point.
    1. Install the receiver cup.
    1. Install and tighten the wing nut.
      Use Special Service Tool: 501-194  Remover, Power Point.

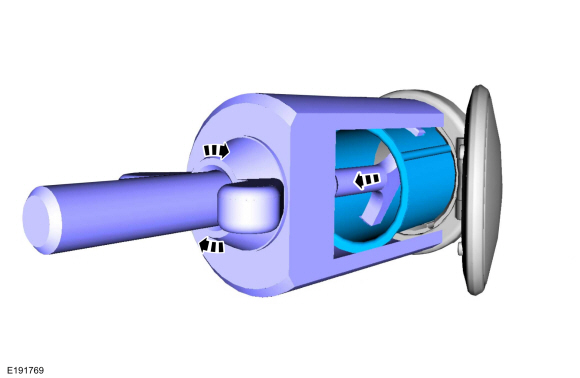

  1. Tighten the wing nut to pull the power point socket out of the retainer.
    Use Special Service Tool: 501-194  Remover, Power Point.
  1. Disconnect the electrical connector.

Installation

  1. Connect the electrical connector and push the new power point socket into the retainer.
