Ford Ecosport: Engine - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Flexplate

Ford Ecosport 2014-2026 Service and Repair Manual / Engine / Engine - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Flexplate

Special Tool(s) / General Equipment

303-103 (T74P-6375-A)
Holding Tool, Flywheel
T74P-77000-A
TKIT-2009TC-F

Removal

Remove the automatic transmission.
Refer to: Transmission (307-01B) .

- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Remove the bolts and the flexplate.
- Discard the bolts.
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Installation

- Install the flexplate and the bolts finger tight.
- Install Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

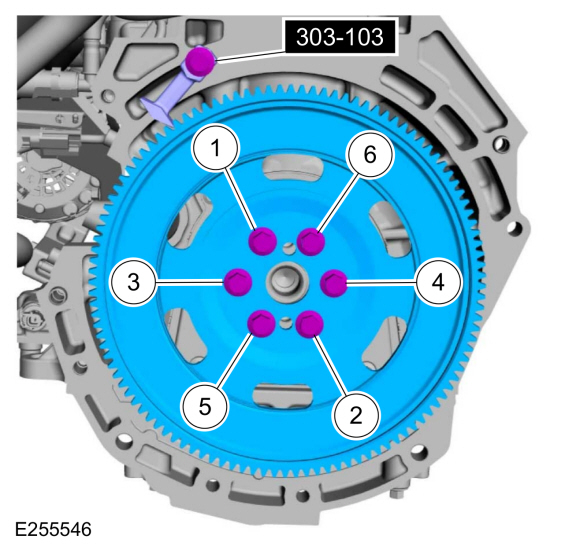

- Tighten the bolts in sequence shown in 3 stages.
  Torque:
    Stage 1: 37 lb.ft (50 Nm)
    Stage 2: 59 lb.ft (80 Nm)
    Stage 3: 83 lb.ft (112 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.

Install the automatic transmission.
Refer to: Transmission (307-01B) .

Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
