Ford Ecosport: Automatic Transmission External Controls / General Procedures - Selector Lever Cable Adjustment - 6-Speed Automatic Transmission – 6F35

Ford Ecosport 2014-2025 Service and Repair Manual / Automatic Transmission / Automatic Transmission External Controls / General Procedures - Selector Lever Cable Adjustment - 6-Speed Automatic Transmission – 6F35

Adjustment

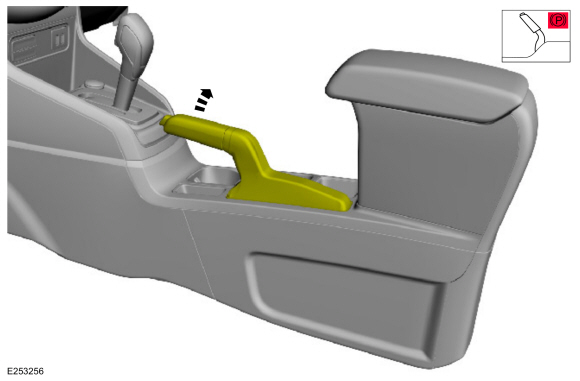

  1. Apply the parking brake.
  1. Position the selector lever in D .
  1. Remove the air cleaner.
    Refer to: Air Cleaner (303-12C Intake Air Distribution and Filtering - 2.0L Duratec-HE (129kW/175PS), Removal and Installation).

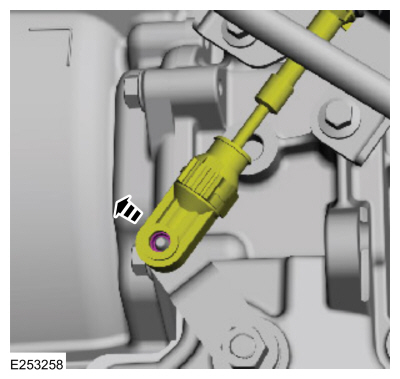

  1. Disconnect the selector lever cable from the transmission manual lever.

  1. Position the transmission manual lever in D .

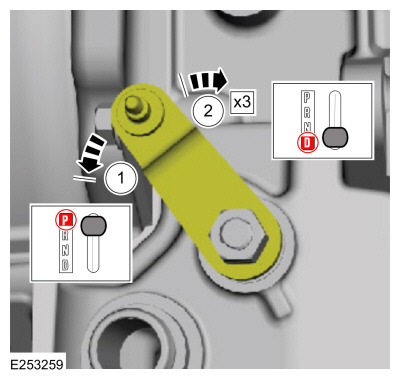

    1. Rotate the transmission manual lever counterclockwise until it stops.
    1. Rotate the transmission manual lever 3 detents into D .

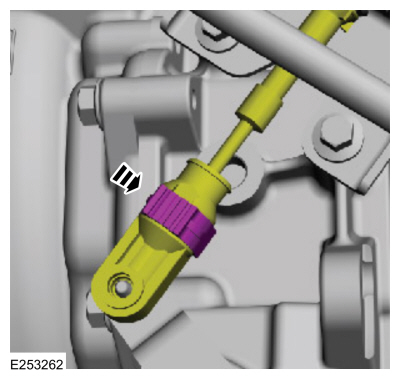

  1. Unlock the selector lever cable adjuster.
  1. Connect the selector lever cable to the transmission manual lever.

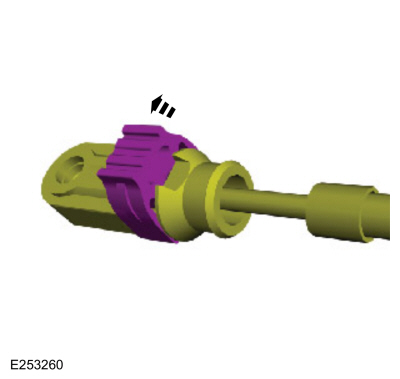

  1. Lock the selector lever cable adjuster lock.
  1. Verify that the engine starts in P and N and that the reverse lamps illuminate in P .
