Ford Ecosport: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Front Door Handle

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Front Door Handle

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: LH side shown, RH side similar.

  1. Remove the front door trim panel
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

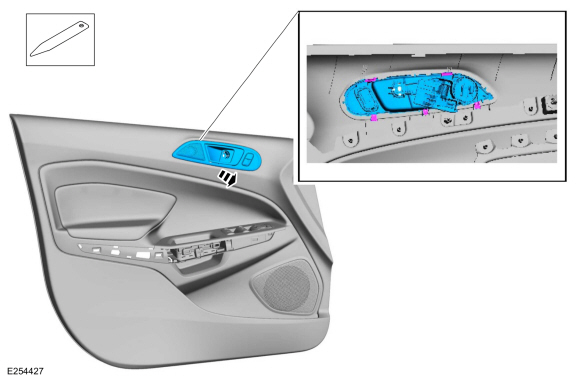

  1. Remove the interior front door handle.
    Use the General Equipment: Interior Trim Remover

  1. NOTE: This step is only necessary when installing a new component.

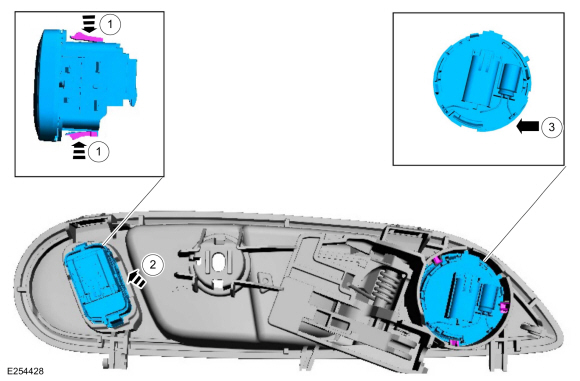

    Remove the front door lock control switch and front door tweeter speaker.
    1. Release the retaining tabs on the front door lock control switch.
    1. Remove the front door lock control switch.
    1. If equipped.
      Release the retaining tabs and remove the front door tweeter speaker.

Installation

  1. To install, reverse the removal procedure.
