Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCCM installed. If the current SCCM does not respond to the diagnostic scan tool, the tool may prompt for As-Built data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the SCCM following the on-screen instructions.

Remove the clockspring.
Refer to: Driver Airbag (501-20B Supplemental Restraint System, Removal and Installation).

Disconnect the SCCM electrical connectors.

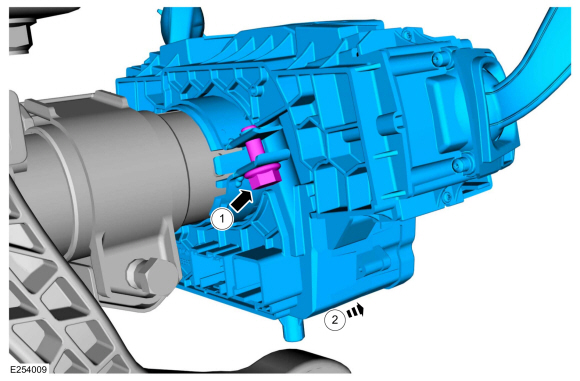

1. Remove the SCCM retainer.
  Torque: 62 lb.in (7 Nm)
1. Remove the SCCM .

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary when installing a new component.
Using a diagnostic scan tool, complete the PMI process for the SCCM following the on-screen instructions.
