Ford Ecosport: Starting System - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Start Inhibit Switch

Ford Ecosport 2014-2026 Service and Repair Manual / Engine / Starting System - 2.0L Duratec-HE (129kW/175PS) / Removal and Installation - Start Inhibit Switch

Removal

NOTICE: Make sure that the clutch pedal remains in the rest position.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

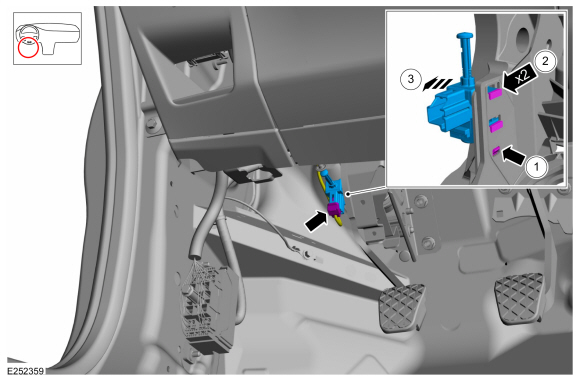

Disconnect the electrical connector and remove the start inhibit switch.

Installation

NOTICE: Make sure that the clutch pedal remains in the rest position.
To install, reverse the removal procedure.
