Ford Ecosport: Seatbelt Systems / Removal and Installation - Rear Seatbelt Buckle LH
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Position the rear seat cushion to the full forward position.
-

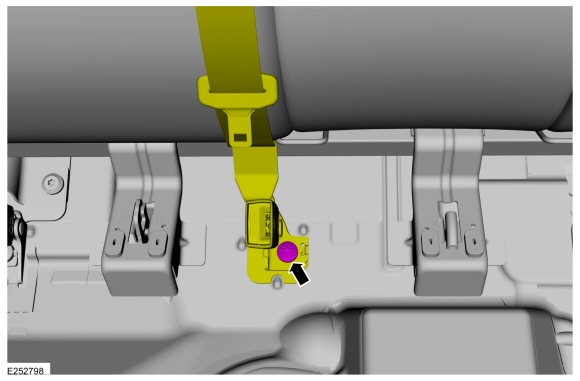

Remove the bolt and position the rear LH seatbelt buckle aside.
Torque:
30 lb.ft (40 Nm)
-
Remove the rear LH seatbelt buckle.
-
Remove and discard the bolt retainer.
-
Remove the bolt.
Installation
NOTE:
During installation, make sure the seatbelt webbing is not
twisted and the seatbelts and buckles are accessible to the occupants.
-
To install, reverse the removal procedure.
-
Check the seatbelt system for correct operation.
Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the LH rear seat backrest.
Refer to: Rear Seat Backrest (501-10B Rear Seats, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Position the rear seat cushions to the full forward position...
