Electronic Manual Temperature Control (EMTC) - Component Location

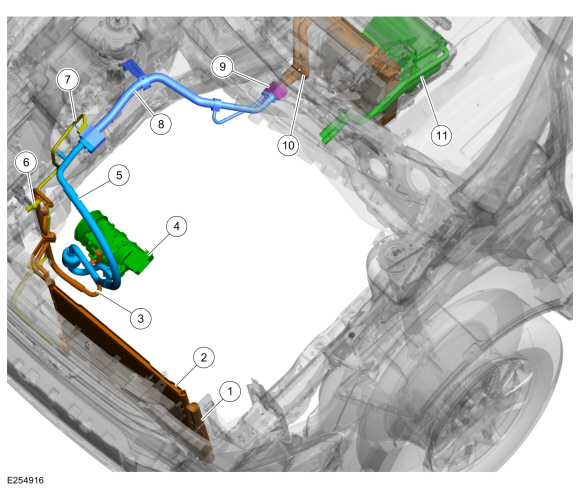

1.5L Duratorq-TDCi shown, All others similar
| Item | Description |
|---|---|
| 1 | Receiver drier element |
| 2 | Condenser |
| 3 | A/C compressor outlet line |
| 4 | A/C compressor |
| 5 | A/C compressor inlet line |
| 6 | A/C pressure transducer |
| 7 | Condenser outlet line |
| 8 | Evaporator inlet and outlet manifold |
| 9 | Thermostatic expansion valve (TXV) |
| 10 | Evaporator |
| 11 | Heater core |
| Item | Description |
|---|---|
| 1 | Blower motor |
| 2 | Air distribution actuator |
| 3 | Heater core |
| 4 | Temperature door actuator |
| 5 | Evaporator |
| 6 | Blower motor speed control |
| 7 | Air inlet door actuator |

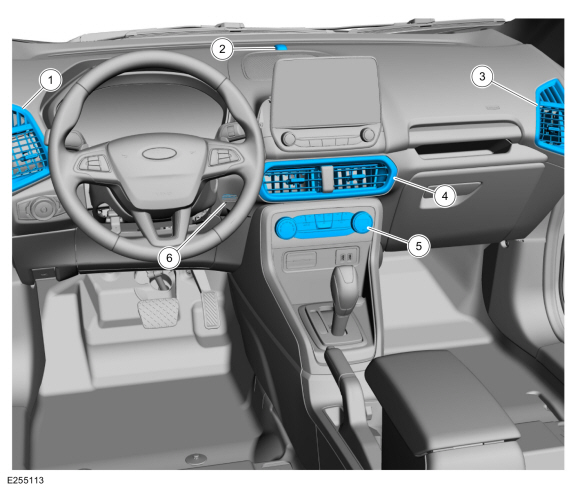

| Item | Description |
|---|---|
| 1 | Driver side register |
| 2 | Sunload sensor |
| 3 | Passenger side register |
| 4 | Center register |
| 5 | Heating, Ventilation, and Air Conditioning (HVAC) module |
| 6 | In-vehicle temperature sensor |
Description and Operation - Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Overview
Overview
WARNING:
Before beginning any service procedure in this section,
refer to Safety Warnings in section 100-00 General Information...
