Ford Ecosport: Front Seats / Removal and Installation - Front Head Restraint Guide Sleeve
Special Tool(s) /
General Equipment
Removal
NOTE:
Typical head restraint guide sleeve shown, others similar.
-

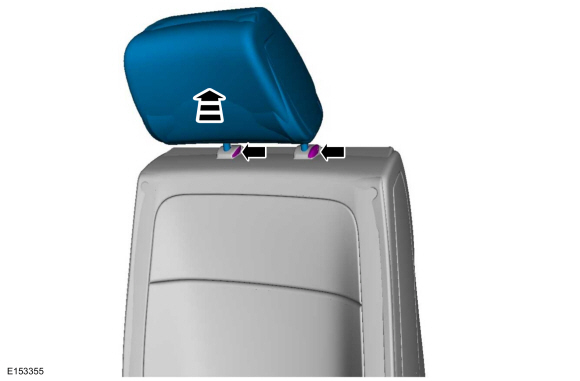

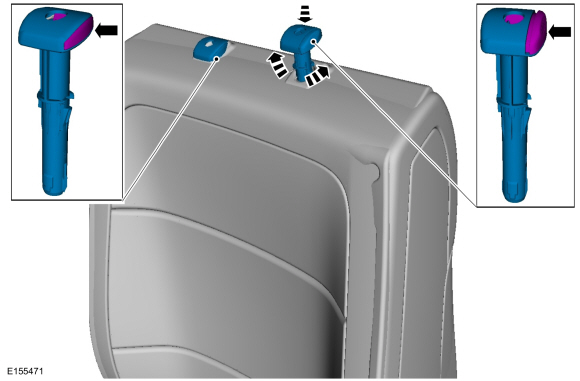

Depress the locking tabs and remove the head restraint.
-

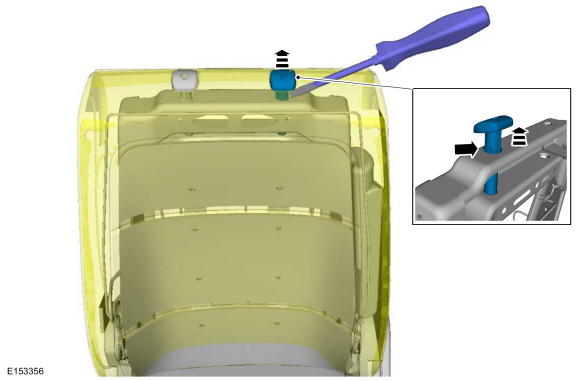

Remove the headrest restraint guide sleeves.
Use the General Equipment: Flat Headed Screw Driver
-

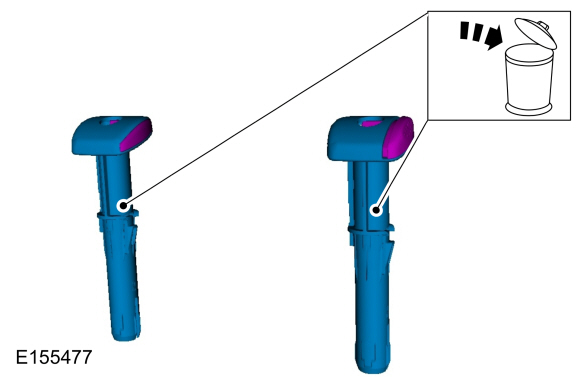

Discard the head restraint guide sleeves.
Installation
-
NOTICE:
Always install new head restraint guide sleeves.
Difficult adjustment of the head restraint may occur. Failure to follow
these instructions may result in component failure.
NOTICE:
The head restraint guide sleeves are not
interchangeable. Failure to install the correct head restraint guide
sleeves at the correct position may result in component failure.
Allow the head restraint guide sleeve to slide freely
through the backrest foam and backrest trim cover. Twist the head
restraint guide sleeve while pushing it into the backrest frame hole as
far as it will go, using hand pressure.
-

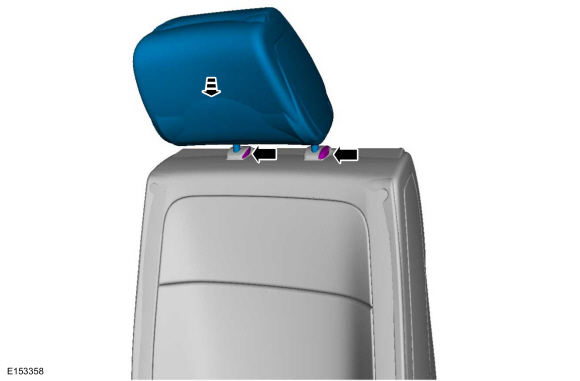

Depress the locking tabs and install the head restraint.
Repair
WARNING:
To minimize the risk of injury, always wear protective
gloves when working with a steamer. Failure to follow these instructions
may result in serious personal injury...
Removal
WARNING:
The following procedure describes critical repair steps
required for correct seat component installation. Follow all notes and
steps carefully...
