Ford Ecosport: Handles, Locks, Latches and Entry Systems / Removal and Installation - Front Door Lock Cylinder

Removal

NOTE: LHD shown, RHD similar.

NOTE: Repair individual door lock cylinders by discarding the inoperative door lock cylinder and building a new door lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys. Remove the exterior front door handle.


  1. Remove the access plug and the exterior front handle retaining screw.
    1. Remove the access plug from the front door.
    1. Remove the exterior front door handle retaining screw.

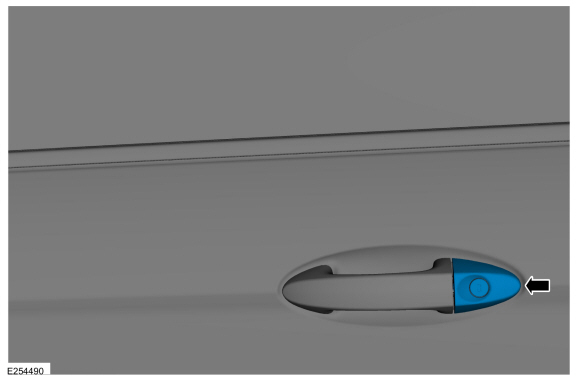

  1. Remove the exterior front door handle trim cover and remove the front door lock cylinder.

Installation

  1. To install, reverse the removal procedure.
  1. Rotate the key to check for correct operation.
