Ford Ecosport: Climate Control System - General Information / Removal and Installation - Center Registers

Ford Ecosport 2014-2026 Service and Repair Manual / Climate Control System / Climate Control System - General Information / Removal and Installation - Center Registers

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

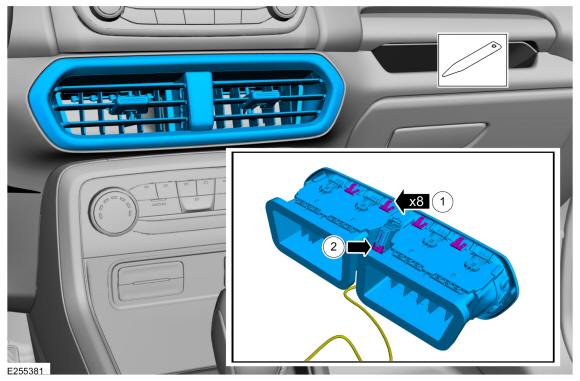

    1. Release the clips.
    1. Disconnect the electrical connector and remove the center registers.
      Use the General Equipment: Interior Trim Remover

Installation

  1. To install, reverse the removal procedure.
