Ford Ecosport: Parking Aid / Removal and Installation - Parking Assist Control Module (PAM)

Ford Ecosport 2014-2025 Service and Repair Manual / Instrumentation and Warning Systems / Parking Aid / Removal and Installation - Parking Assist Control Module (PAM)

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.
Using a diagnostic scan tool, begin the PMI process for the PAM following the on-screen instructions.

Remove the LH load compartment trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

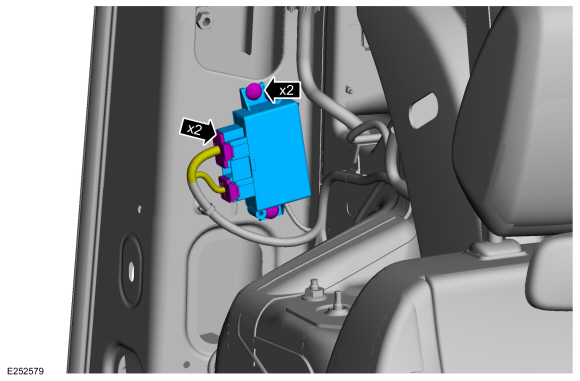

Remove the pin-type retainers, disconnect the electrical connectors and remove the PAM .

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary if replacing the component.
Using a diagnostic scan tool, complete the PMI process for the PAM following the on-screen instructions.

General Procedures - Elevation System Check

Check Turn the ignition ON (engine OFF). Set the parking brake. Place the gearshift in REVERSE (R) for rear parking aid sensors...

Removal and Installation - Rear Parking Aid Sensor

Removal NOTE: Removal steps in this procedure may contain installation details. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation)...
