Ford Ecosport: Roof Opening Panel / Removal and Installation - Roof Opening Panel Front Drain Hose

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Roof Opening Panel / Removal and Installation - Roof Opening Panel Front Drain Hose

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the headliner.
Refer to: Headliner (501-05 Interior Trim and Ornamentation, Removal and Installation).

Remove the A-Pillar trim panel.
Refer to: A-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

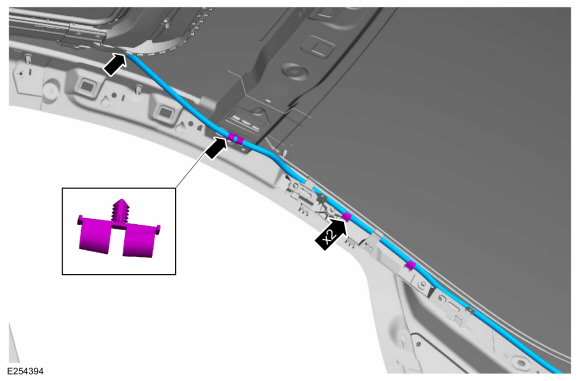

Detach and position aside the roof opening panel front drain hose.

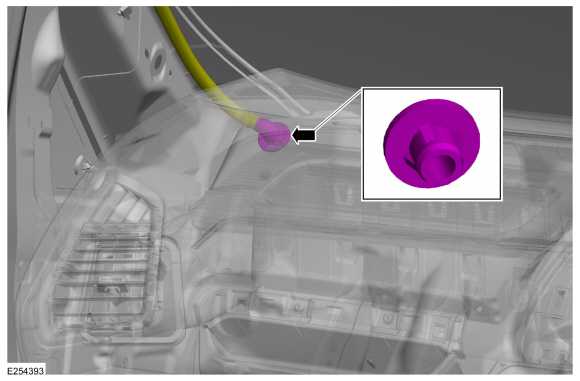

Detach the retainer, release the clips and remove the roof opening panel front drain hose.

Installation

To install, reverse the removal procedure.
