Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

Remove the rear door trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

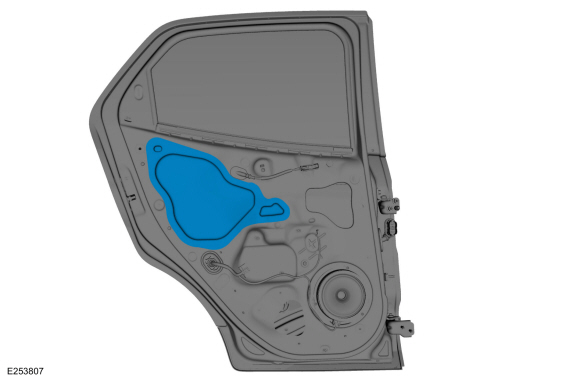

Remove the rear door watershield.

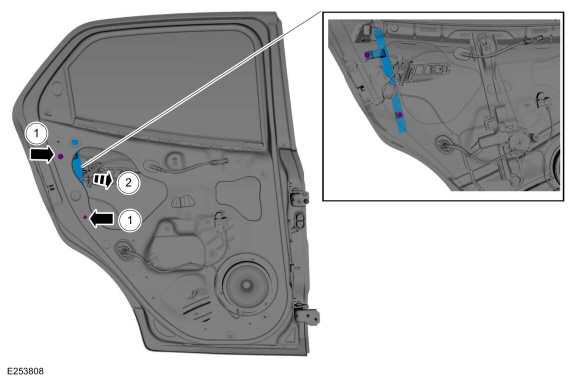

Remove the rear door glass run and bracket.
1. Remove the rear door glass run and bracket bolts.
  Torque: 27 lb.in (3 Nm)
1. Remove the rear door glass run and bracket.

Installation

To install, reverse the removal procedure.

If the door is equipped with one touch up/down.
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
