Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Passenger Door Window Control Switch

Special Tool(s) / General Equipment

Removal

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.

NOTE: Removal steps in this procedure may contain installation details.

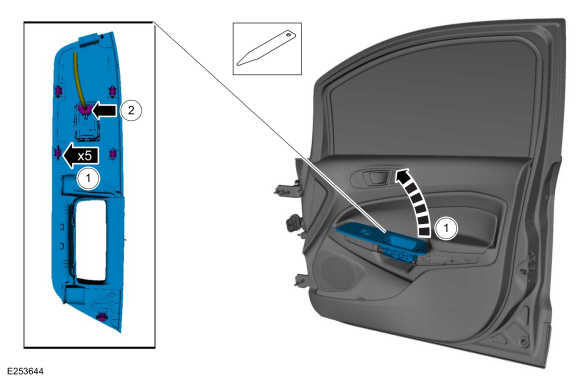

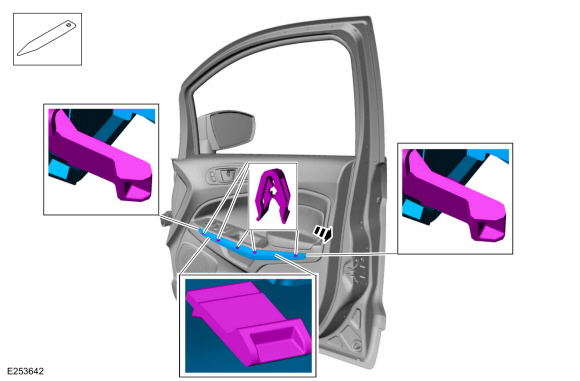

1. Release the clips and the tabs and remove the armrest side trim panel.
   Use the General Equipment: Interior Trim Remover

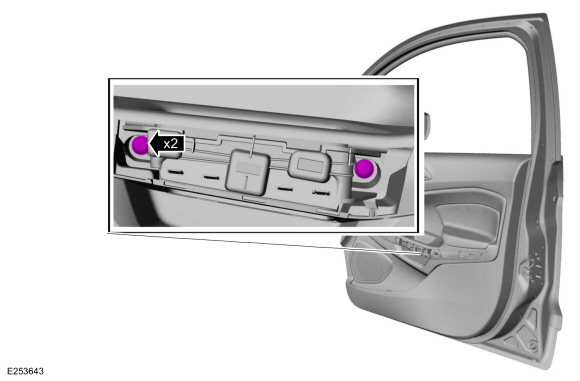

1. Remove the door trim panel screws.


1.
   Remove the passenger door window control switch and bezel as an assembly.

   1. Release the clips.
      Use the General Equipment: Interior Trim Remover
   2. Disconnect the electrical connector.


1. NOTE: This step is only necessary when installing a new component.


   Remove the passenger door window control switch.

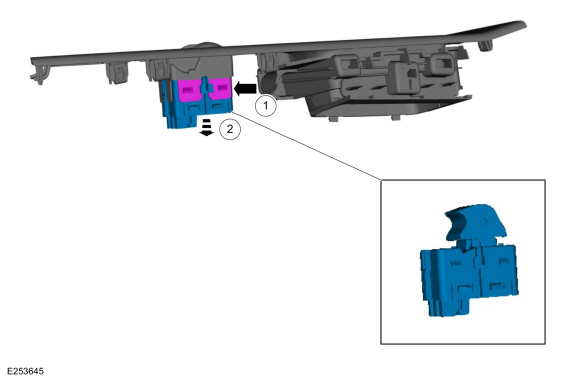

   1. Release the passenger door window control switch retaining clips

   2. Remove the passenger door window control switch from the bezel.


Installation

1. To install, reverse the removal procedure.
