Removal

Remove the interior rear view mirror.
Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).

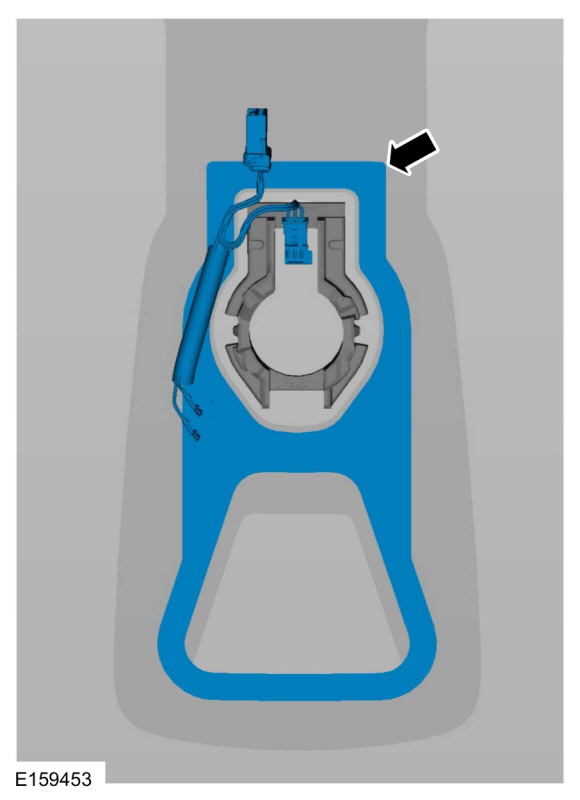

Remove the IPMA camera heated windshield element.

Installation

NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.
Clean and remove any residual adhesive from the windshield.

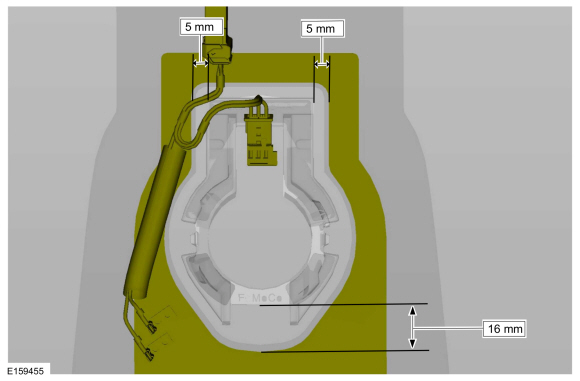

Remove the protective covering from the new camera windshield defrost heater and align the camera windshield defrost heater.

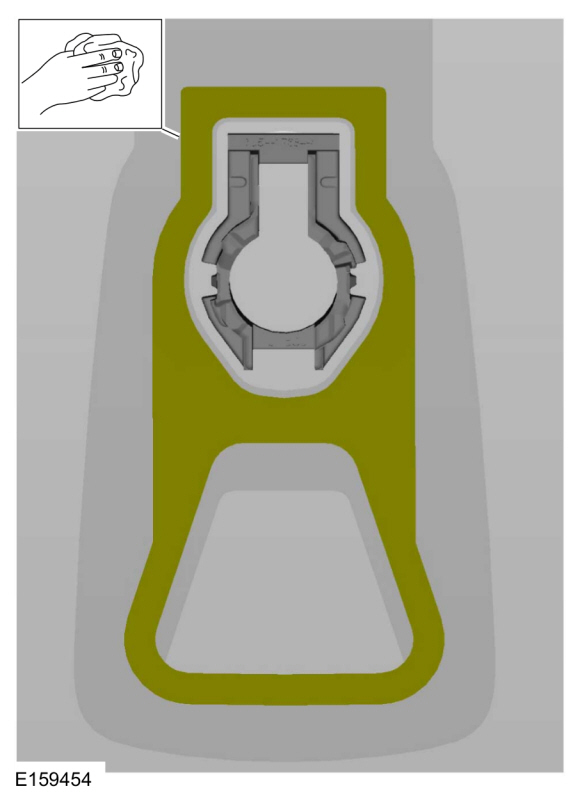

NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.
Install the IPMA camera heated windshield element.

Install the interior rear view mirror.
Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).
