Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Front Door Window Regulator Motor

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door window regulator.
   Refer to: Front Door Window Regulator (501-11 Glass, Frames and Mechanisms, Removal and Installation).


1.

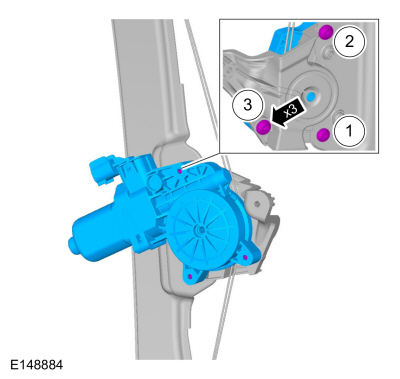

   Remove the front door window regulator motor.

   1. Remove the front door window regulator motor bolt.
      Torque: 35 lb.in (4 Nm)
   2. Remove the front door window regulator motor bolt.
      Torque: 35 lb.in (4 Nm)
   3. Remove the front door window regulator motor bolt and the front door window regulator motor.
      Torque: 35 lb.in (4 Nm)

Installation

1. To install, reverse the removal procedure.


1. If the door is equipped with one touch up/down.
   Carry out the power door window initialization.
   Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
