Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Front Door Glass Top Run

Removal

NOTE: LH side shown, RH side similar.

1. Remove the front door window glass.
   Refer to: Front Door Window Glass (501-11 Glass, Frames and Mechanisms, Removal and Installation).

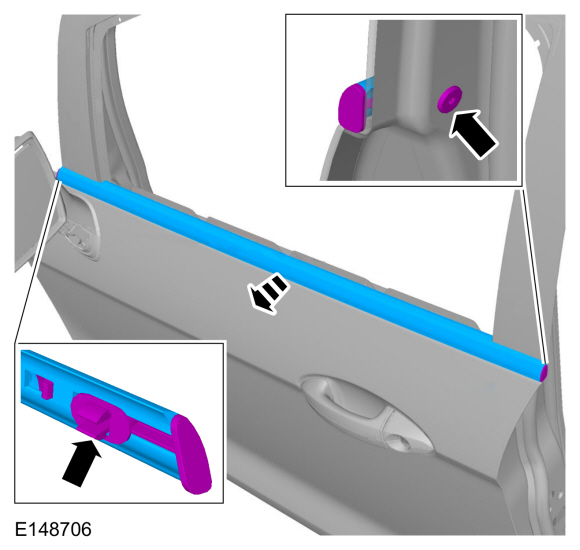

1. Remove the front door outer belt moulding.

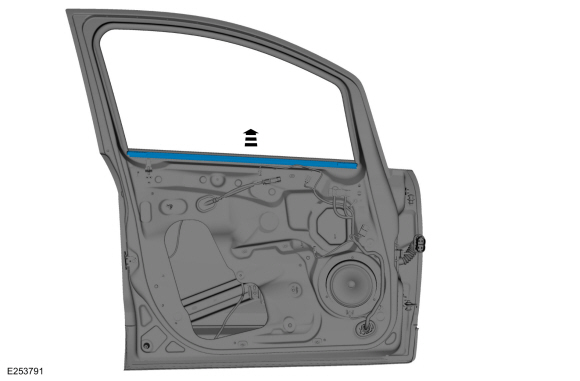

1. Remove the front door inner belt moulding.

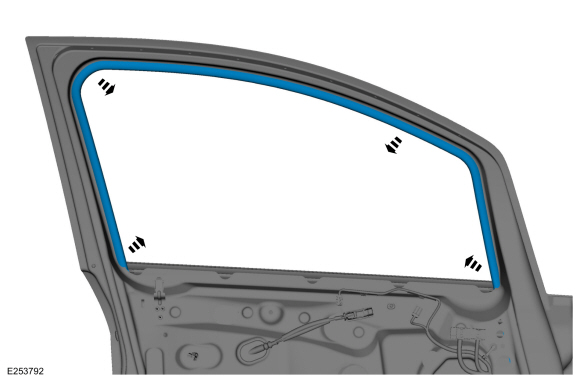

1. Remove the front door glass top run.


Installation

1. To install, reverse the removal procedure.


1. If the door is equipped with one touch up/down.
   Carry out the power door window initialization.
   Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
