Ford Ecosport: Glass, Frames and Mechanisms / Removal and Installation - Front Door Glass Run and Bracket

Ford Ecosport 2014-2026 Service and Repair Manual / Body and Paint / Glass, Frames and Mechanisms / Removal and Installation - Front Door Glass Run and Bracket

Removal

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

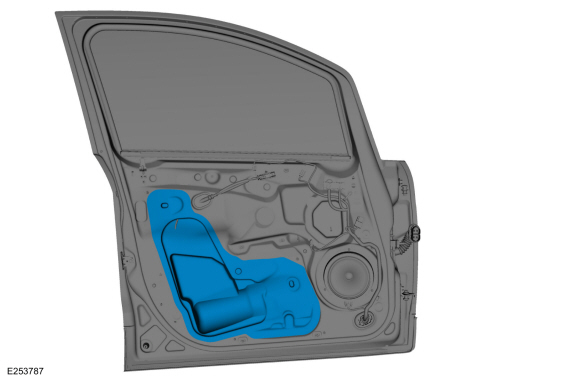

Remove the front door watershield.

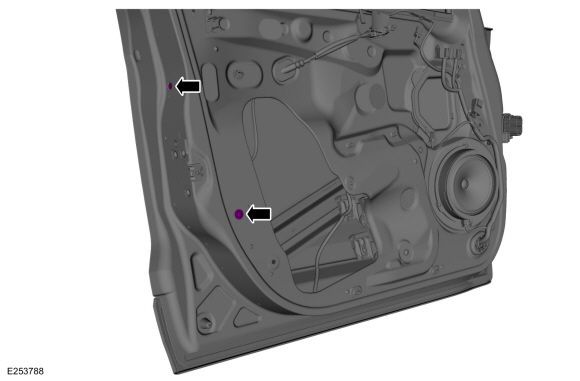

Remove the front door glass run and bracket bolts.
Torque: 27 lb.in (3 Nm)

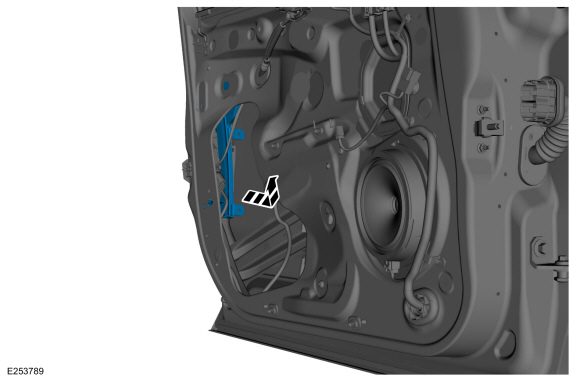

Remove the front door glass run and bracket.

Installation

To install, reverse the removal procedure.

If the door is equipped with one touch up/down.
Carry out the power door window initialization.
Refer to: Power Door Window Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
